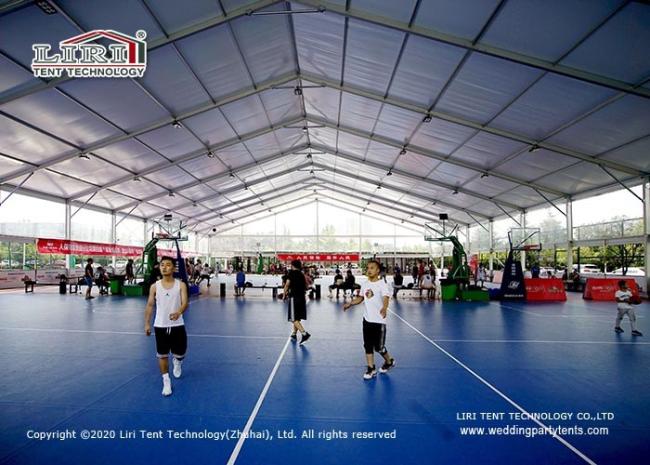

Temporary 33x51m Sport Event Tents For Basketball Court
33m Clear Span outdoor Sport Event Tent With White PVC roof cover
Applications:
It is widely used for various sports venues, like a basketball court, swimming pool, badminton court, table tennis hall and so on. Based on the multifunctional purpose, people just need to change the different decoration will be ok. For such a big tent, it can help you to save a lot of cost on the building, and it can also use for temporary purposes.
| Dimension | Clear Span | Side Height | Ridge Height | Bay Distance |
| EBT 33m | 33 m | 6 m | 8.8 m | 5 m |
| Length | No limitation | |||
| Main Structure Profile | 256X121X5mm | |||
Description:
This series of sports event tent, which is suitable to use for the basketball court, swimming pool, badminton court, table tennis hall, etc. You can enjoy sports regardless of the bad weather.
Life Span:
For the structure of the tent, it is strong enough for permanent or semi - permanent. The frame is using the 6061/ T6 aluminum frame, and it can use for about 20-25 years. For cover which is double coated PVC , fire-retardant, water proof, anti-UV, can be used udner 65 degree, 10 years lifespan.
Features&Specifications
1.1 Framework material: Hard pressed extruded aluminium 6061/ T6 (13HW)
1.2 Connecter: Strong hot-DIP galvanized steel, zinc thickness over 80um
1.3 Cover material
A) High quality double PVC-coated polyester textile
B) 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
C) Fabric weight: From 750 to 900G/M2
Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
1.4 Snow load: 75kg/sqm (snow can't stay if use big degree roof design)
1.5 Wind load: Max. 100km/h (can be reinforced)
1.6 Easy to be assembled and dismantled, removable
1.7 No pole inside, 100% room is available
1.8 Sizes can be customized(like side/leg height)
Tent Fixing Methods
- If it is concrete ground , pls use the expandable bolts
- If it is termac grond or grass ground or sand ground or other soft gronds , pls use the steel anchors .
- If it is marble or tile ground or other kind indestructible grounds , pls use the weight plates system
- If you will make the concrete bases to fix the tent , pls use the embeded bolts M 24 x 500 mm
Usage
1. Table tennis hall
2. Badminton court
3. Swimming pool
4. Basketball court
.....
Optional Accessories
- Wooden Flooring System: VIP cassette flooring, simple cassette flooring
- Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
- Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
- Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
- Fixing Methods: ground anchors, weight plate, expandable bolts
- Covers: colorful cover, transparent cover, inflatable roof cover
- Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
- Adjustable flooring system, can fix on the uneven land
Packaging:
- Aluminum frame packed in membrane film
- Roof and sidewall in professional PVC carry bag
- Hardware packed in solid carton box
