Life Span:

For the structure of the tent, it is strong enough for permanent or semi-permanent. The frame is using the 6061/ T6 aluminum frame, and it can use for about 20-25 years. For cover which is double-coated PVC, fire-retardant, waterproof, anti-UV, can be used under 65 degree, 10 years lifespan.

Features&Specifications

1.1 Framework material: Hard pressed extruded aluminum 6061/ T6 (13HW)
1.2 Connecter: Strong hot-DIP galvanized steel, zinc thickness over 80um
1.3 Cover material
A) High quality double PVC-coated polyester textile
B) 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear-resistant, self-cleaning ability, etc.
C) Fabric weight: From 750 to 900G/M2
Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
1.4 Wind load: Max. 100km/h (can be reinforced)
1.5 Snow load: 75kg/sqm (snow can't stay if use big degree roof design)
1.6 Easy to be assembled and dismantled, removable
1.7 No pole inside, 100% room is available
1.8 Sizes can be customized(like side/leg height)

Tent Fixing Methods

• If it is concrete ground, pls use the expandable bolts
• If you will make the concrete bases to fix the tent, pls use the embedded bolts M 24 x 500 mm
• If it is marble or tile ground or other kind indestructible grounds, pls use the weight plates system
• If it is tarmac ground or grass ground or sand ground or other soft grounds, pls use the steel anchors;

Usage

1. Table tennis hall

2. Badminton court

3. Swimming pool

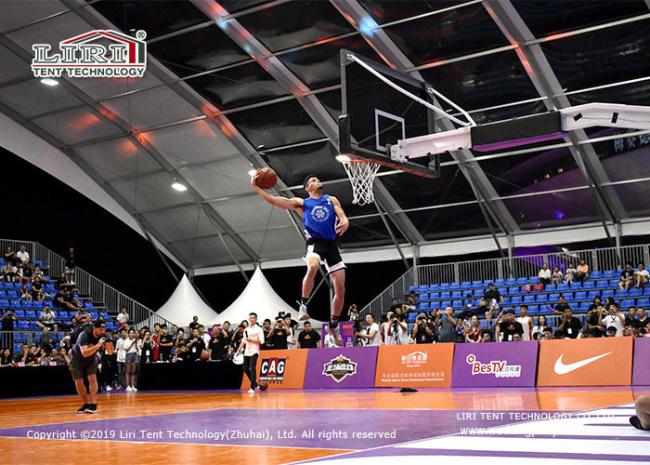

4. Basketball court

.....

Optional Accessories

• Wooden Flooring System: VIP cassette flooring, simple cassette flooring
• Adjustable flooring system can fix on the uneven land
• Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
• Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
• Fixing Methods: ground anchors, weight plate, expandable bolts
• Covers: colorful cover, transparent cover, inflatable roof cover
• Other Optional Items: table, chair, lighting, AC, carpet, installation tools, etc.
• Doors: double-wing glass door, single-wing glass door, glass fire door, aluminum door, rolling shutter(automatic or manual)

Packaging:

• Roof and sidewall in a professional PVC carry bag
• Aluminum frame packed in membrane film
• Hardware packed in solid carton box
