Flame Retardant 30m Sport Event Tents With ABS Wall

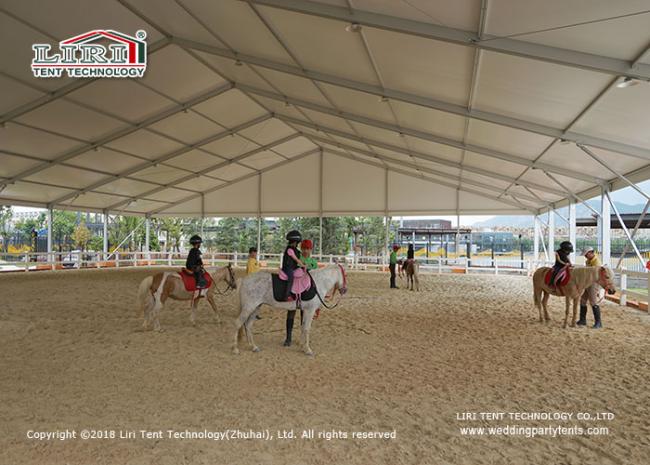

Liri Outdoor Big Tent for Stable / Equestrian / Horse Arena
The width of customized indoor football field structures ranging from 10m to 80m can be provided by our company , and the length is not restricted. This football field project with design of curved structure not only highlights its elegant, fashionable style , but also become the landmark of the scene . Curved design of indoor football field has great wind and snow loading characteristics , provides the coaches and athletes ideal training site in bad weather . The spacious space in football field, without any upright support , 100% of the internal space is utilized for football players to sweat heavily in passion . Meanwhile , given the intense exercise with air conditioning is inappropriate , we specially designed semicircle ventilation in the sidewalls all around so that the internal room achieved good effect of ventilation , provided a very comfortable indoor football field .
Optional Accessories of wedding tent hall
· Covers: colorful cover , transparent cover , inflatable roof cover
· Windows: dome or square clear PVC windows , mesh window , glass window for glass wall
· Wooden Flooring System: VIP cassette flooring , simple cassette flooring
· Doors: double-wing glass door , single-wing glass door , glass fire door, aluminum door , rolling shutter(automatic or manual)
· Wall: soft PVC fabric wall , glass wall , ABS hard wall , sandwich panel wall , steel plate wall
· Fixing Methods: ground anchors , weight plate , expandable bolts
· Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
· Other Optional Items: table , chair , lighting , AC , carpet , installation tools etc .
Technical Data
| Item | Width | Eave Height | Ridge Height | Bay Distance | Main Profile |
| PG | 10m | 4m | 7.16m | 5m | 204x120x4mm(4-channel) |
| PG | 15m | 4m | 8.75m | 5m | 204x120x4mm(4-channel) |
| PG | 20m | 4m | 9.42m | 5m | 204x120x4mm(4-channel) |
| PG | 30m | 4m | 13.2m | 5m | 256x121x5mm(4-channel) |
| PG | 40m | 4m | 15.4m | 5m | 300x120x5mm(4-channel) |
| PG | 50m | 4m | 16.0m | 5m | 300x120x5mm(4-channel) |
| PG | 60m | 4m | 17.0m | 5m | 400x120x7mm(4-channel) |
| The length can be extended by 5m bay such as 15m, 20m, 30m, 40m... Customized size is available. | |||||
| Main Profile |
Material: Hard pressed extruded aluminium 6082-T6, 6061/T6 Features: Stainless |
| Cover |
Material: Double PVC-coated polyester textile, 750g-900g/m² Features: Waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant |
| Eave Connection | Hot-dip Galvanized twin steel plate |
| Wind Loading | 100km/hour |
Application
Our gymnasium structure has the characteristics of economical and practical , multi-functional and high efficiency . It can be also used for basketball, tennis and other stadium besides indoor football field .We can provide you with reliable sports venues solution if you want to know more information .
