40m X 100m Black PVC Modular Temporary Structure Self Cleaning
40m X 100m Black PVC Modular Temporary Structure for Basketball Courts

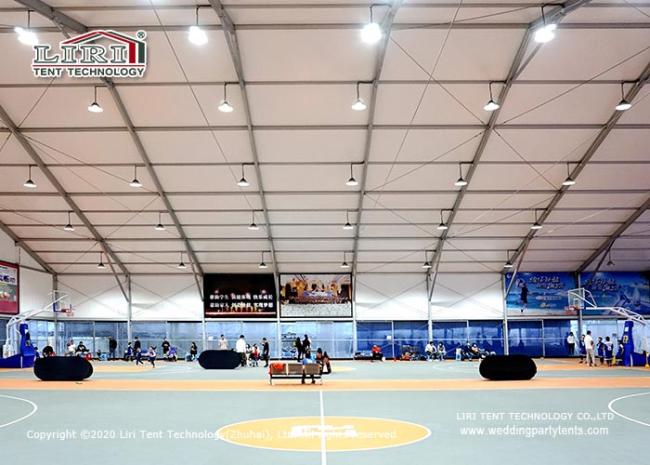

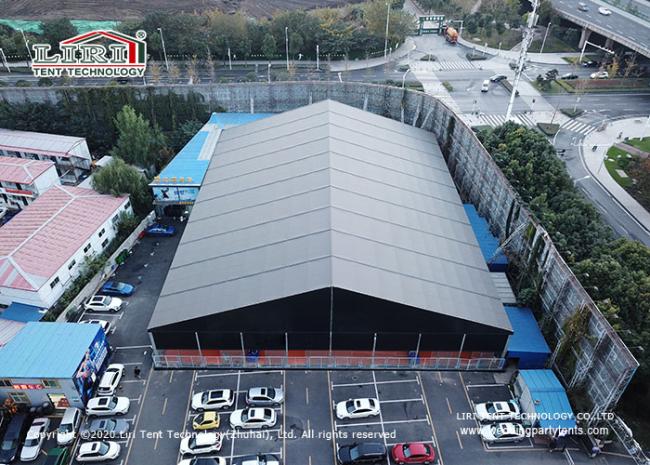

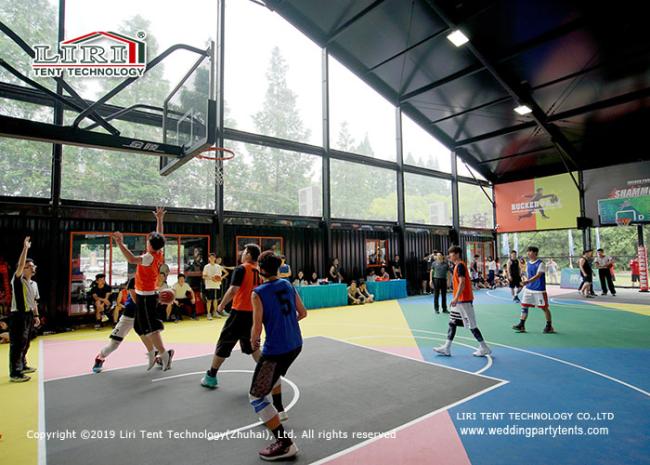

The indoor basketball court we designed improves the construction problem of the general indoor basketball court. This kind of aluminum alloy frame structure is a temporary structure, with no foundation requirement, lower cost, quick installation, and rapid to use anytime. We use high-strength aluminum alloy and PVC fabric, which can be used for a long time. The indoor basketball court meets the high-efficiency and environmentally-friendly construction concept, and it can make full use of the idle space to install the basketball court park. The length, width, and height of the basketball court can be customized due to the requirement and area of the court. If you want to use it as a semi-permanent building, we can also provide more optional accessories, for example, the PVC sidewall can be replaced with a hard sidewall and air condition is also available.
| Dimension | Clear Span | Eave Height | Ridge Height | Bay Distance |
| BT 18 | 18m | 4m | 7.06m | 5m |
| BT 20 | 20m | 4m | 7.1m | 5m |
| BT 25 | 25m | 4m | 7.25m | 5m |
| EBT 30 | 30m | 4m | 8.9m | 5m |
| TH 40 | 40m | 4m | 10.4m | 5m |
| LH 50 | 50m | 5m | 13m | 5m |
| HH 60 | 60m | 5m | 14.6m | 5m |
| Main Profile | 204x120x4mm, 256x121x5mm, 300x120x5mm... | |||
Specifications & Features
- Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last over 20 years.
- Roof Cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear-resistant, self-cleaning, etc.
- Connector: strong hot-dip galvanized steel
- Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius
- Wind Loading: max. 100km/h (can be reinforced)
- Snow Loading: 30kg/sqm
- Easy to be assembled and dismantled, moved from place to place.
- No pole inside, 100% available interior space.
Optional Accessories
- Windows: transparent PVC fabric, glass windows...
- Roof Shape: regular A shape, dome roof, polygonal, curved roof...
- Doors: PVC sliding doors, double-wing glass doors...
- Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall...
- Fixing Tools: steel anchors, weight plate, expandable bolts...
- Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
- Other Optional Items: printing, lighting, air conditioning, sports flooring, installation tools, etc.
Packing
- Aluminum frame packed in membrane film
- Hardware packed in solid carton box
- Roof and sidewall in a self-made PVC carry bag
- Tailor-made packing is available
