Aluminum Frame Large PVC Cover Europe Sports Marquee Tent Manufacturer in China

Packaging Details

1. aluminum frame packed in membrane film
2. hardware packed in solid carton box
3. roof and sidewall in professional PVC carry bag

Port

Zhuhai, China

Lead Time:

Quantity(Square Meters)	1 - 1000	>1000
Est. Time(days)	35	To be negotiated

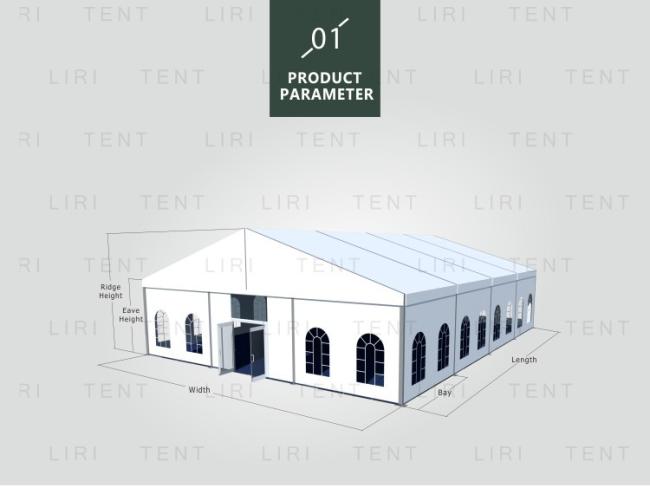

Item	Width	Eave Height	Ridge Height	Bay Distance	Main Profile
BT	10m	3.88m	5.53m	5m	204x120x4mm(4-channel)
BT	12m	3.88m	5.83m	5m	204x120x4mm(4-channel)
BT	15m	3.88m	6.30m	5m	204x120x4mm(4-channel)
BT	20m	3.88m	7.10m	5m	204x120x4mm(4-channel)
BT	21m	3.88m	7.25m	5m	204x120x4mm(4-channel)
BT	25m	3.88m	7.88m	5m	204x120x4mm(4-channel)
EBT	25m	3.88m	8.00m	5m	256x121x5mm(4-channel)
EBT	30m	3.88m	8.90m	5m	256x121x5mm(4-channel)
The length can be extended by 5m bay such as 15m, 20m, 30m, 40m... Customized size is available.

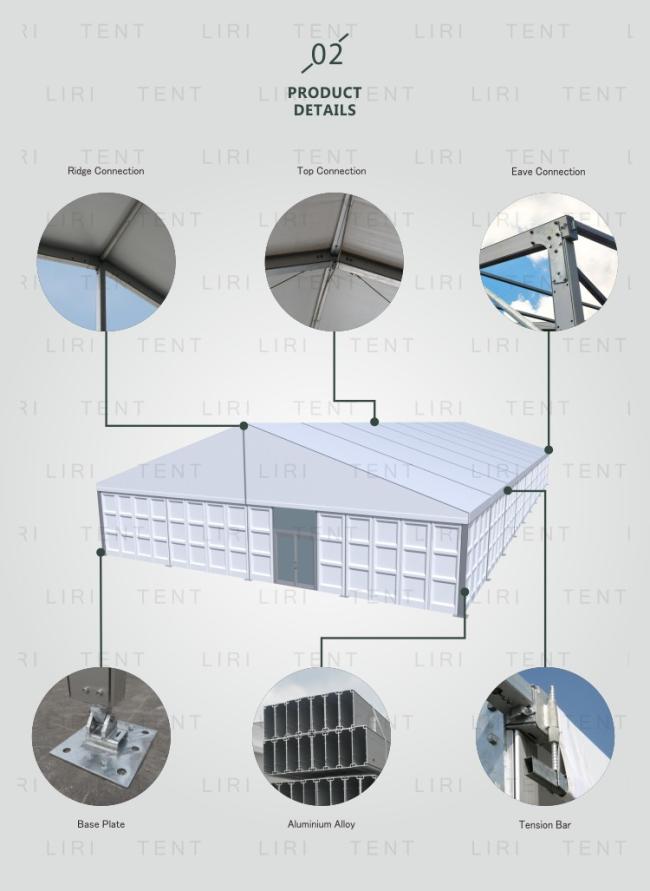

Main Profile	Material: Hard pressed extruded aluminium 6082-T6, 6061/T6 Features: Stainless
Cover	Material: Double PVC-coated polyester textile, 750g-900g/m² Features: Waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant
Eave Connection	Hot-dip Galvanized twin steel plate
Wind Loading	100km/hour
