Glass Walls 10m X 20m Dome Roof Arcum Tent For Golf Games

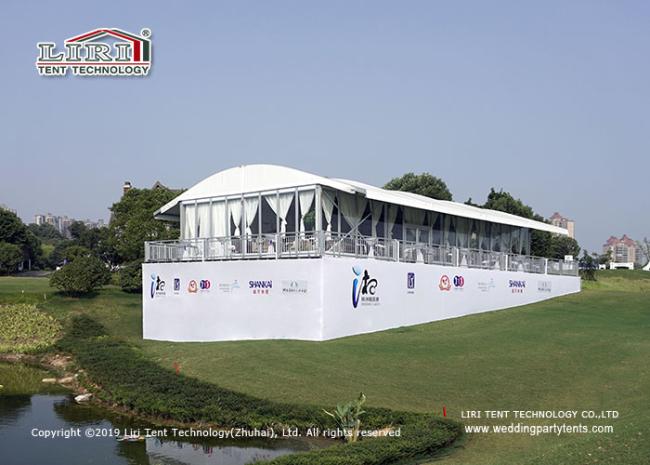

10m x 20m Dome Roof Arcum Tent with Glass Walls for Golf Games
The Arcum Tent is composed of a high reinforced aluminum frame and PVC covers. Arcum tent is based on the “A” frame clear span tent design and reasonably absorbs the Chinese traditional architectural design elements. We pre-press the aluminum roof-beams so that it can become the curve shape.
The characteristics of the Arch Tent will include a good-looking structure with a beautiful roofline and a lot of space inside the tent. It will also give you a feeling of currency to use it for big tents, exhibitions, or for a temporary showroom.
| Dimension | Clear Span | Eave Height | Ridge Height | Bay Distance |
| NPT | 6m | 2.6m | 3.71m | 3m |
| NPT | 10m | 2.6m | 4.4m | 3m |
| ET | 15m | 3.3m | 5.62m | 5m |
| BT | 25m | 4m | 7.88m | 5m |
| EBT | 30m | 4m | 8.9m | 5m |
| TH | 40m | 5m | 10.4m | 5m |
| LH | 50m | 5m | 12m | 5m |
| Main Profile | 100x48x3mm, 204x120x4mm, 256x121x5mm, 300x120x5mm... | |||
Specifications & Features
- Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last over 20 years.
- Roof Cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear-resistant, self-cleaning, etc.
- Connector: strong hot-dip galvanized steel
- Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius
- Wind Loading: max. 100km/h (can be reinforced)
- Snow Loading: 30kg/sqm
- Easy to be assembled and dismantled, moved from place to place.
- No pole inside, 100% available interior space.
Optional Accessories
- Windows: transparent PVC fabric, glass windows...
- Roof Shape: regular A shape, dome roof, polygonal, curved roof...
- Doors: PVC sliding doors, double-wing glass doors...

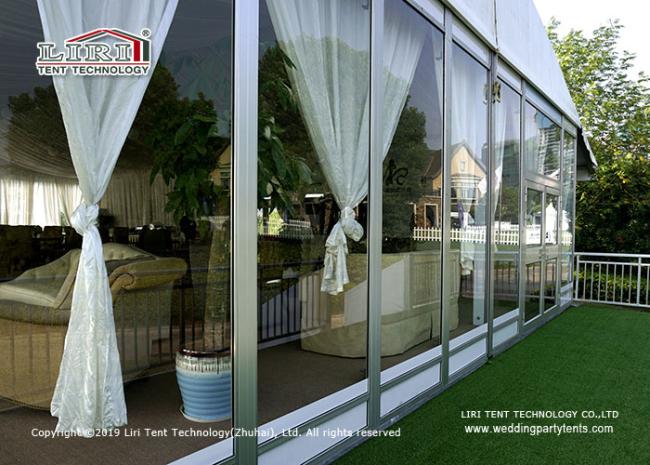

- Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall...
- Fixing Tools: steel anchors, weight plate, expandable bolts...
- Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
- Other Optional Items: printing, lighting, air conditioning, sports flooring, installation tools, etc.
Packing
- Aluminum frame packed in membrane film
- Hardware packed in solid carton box
- Roof and sidewall in a self-made PVC carry bag
- Tailor-made packing is available
