Arcum Outdoor Exhibition Tents With PVC Fabrice Glass Walls
Luxurious White Arcum Tent With PVC Fabrice And Glass Walls For Exhibition
The Arcum Tent is composed of a high reinforced aluminum frame and PVC covers. Arcum tent is based on the “A” frame clear span tent design and reasonably absorbs the Chinese traditional architectural design elements. We pre-press the aluminum roof-beams so that it can become the curve shape.
The characteristics of the Arch Tent will include a good-looking structure with a beautiful roofline and a lot of space inside the tent. It will also give you a feeling of currency to use it for big tents, exhibitions, or for a temporary showroom.
Specifications:
Below chart shows the width range of the dome shape double decker tent with eave height and ridge height ranges, the length can be increased by 5m without limit.
| Clear-span Width | Eave Height | Ridge Height | Bay Distance | Main Profile |
| 15 m / 49.21 feet | 3.92 m / 12.86 feet | 5.55 m / 18.21 feet | 5 m / 16.40 feet | 256 x 121 x 4 mm (4 – channel) |
| 20 m / 65.62 feet | 3.92 m / 12.86 feet | 6.33 m / 20.77 feet | 5 m / 16.40 feet | 256 x 121 x 4 mm (4 – channel) |
| 25 m / 82.02 feet | 3.92 m / 12.86 feet | 7.15 m / 23.46 feet | 5 m / 16.40 feet | 256 x 121 x 4 mm (4 – channel) |
| 30 m / 98.43 feet | 3.92 m / 12.86 feet | 7.87 m / 25.82 feet | 5 m / 16.40 feet | 256 x 121 x 4 mm (4 – channel) |

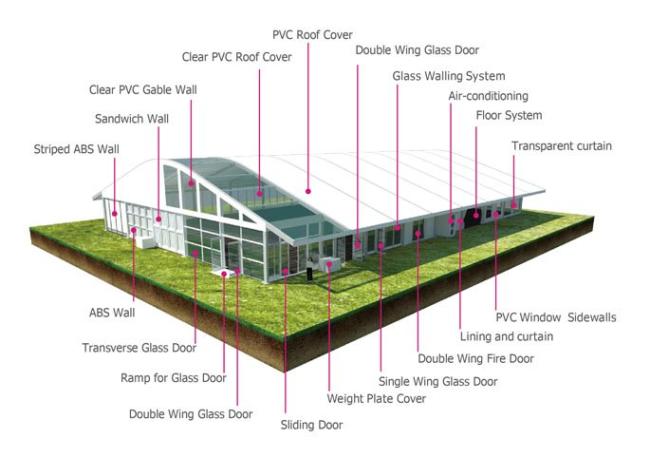

Optional Accessories
1. Covers: waterproof cover, colourful cover, inflatable roof cover
2. Wall: PVC fabric wall, glass wall, ABS hard wall, steel plate wall, sandwich panel wall
3. Windows: dome or square clear PVC windows, glass window for glass wall, mesh window,
4. Wooden Flooring System: VIP cassette flooring, simple cassette flooring
5. Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
6. Fixing Methods: ground anchors, weight plate, expandable bolts
7. Other Optional Items: chair, tabel, lighting, AC, carpet, installation tools etc.
Application:
Event, exhibition, warehouse, party, wedding, sport, ect.
Packaging
1. Aluminum frame packed in membrane film;
2. Hardware packed in solid carton box;
3. Roof and sidewall in professional PVC carry bag;
4.customized packing
Fxing Methods
1. If it is concrete ground , pls use the expandable bolts .
2. If it is termac ground or grass ground or sand ground or other soft grounds , pls use the steel anchors .
3. If it is marble or tile ground or other kind indestructible grounds , pls use the weight plates system ;
4. If you will make the concrete bases to fix the tent , pls use the embede bolts M 24 x 500 mm
Main Profile
Material: Hard pressed extruded aluminium 6082-T6, 6061/T6
Features: Stainless
Cover
Material: Double PVC-coated polyester textile, 750g-900g/m²
Features: Waterproof, flame retardant to DIN4102 B1, M2, CFM,
UV resistant
Eave Connection Hot-dip Galvanized twin steel plate
Wind Loading 100km/hour
