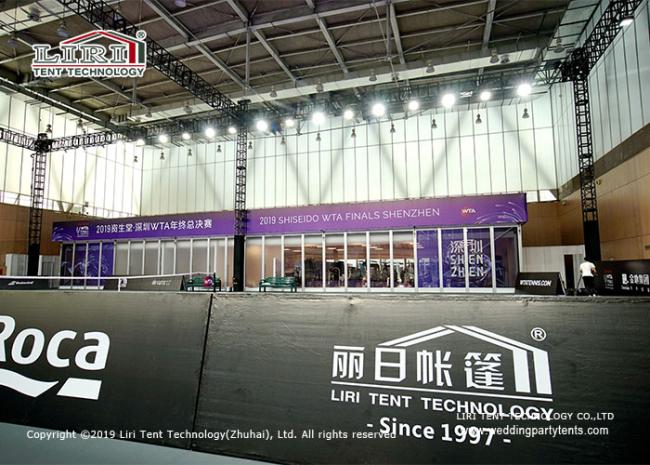

Fitness Stadium 10m Span Width Sport Event Tents With Glass Walls
10m Span Width Clear Span Structure With Glass Walls For Fitness Stadium
Nowadays, our clear span tents can effectively solve the problem of time-consuming and long-term unused of traditional stadiums. The sports tent has a flexible mounting structure design that is easy to disassemble and install and can be built in just one to two weeks. Clearspan sports tent has become a new direction for sports facilities, saving customers a lot of time and money. We offer temporary and semi-permanent modular construction solutions to design a variety of sports facilities.
| Dimension | Clear Span | Eave Height | Ridge Height | Bay Distance |
| BT 18 | 18m | 4m | 7.06m | 5m |
| BT 20 | 20m | 4m | 7.1m | 5m |
| BT 25 | 25m | 4m | 7.25m | 5m |
| EBT 30 | 30m | 4m | 8.9m | 5m |
| TH 40 | 40m | 4m | 10.4m | 5m |
| LH 50 | 50m | 5m | 13m | 5m |
| HH 60 | 60m | 5m | 14.6m | 5m |
| Main Profile | 204x120x4mm, 256x121x5mm, 300x120x5mm... | |||
Specifications & Features
- Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last over 20 years.
- Roof Cover: high-quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear-resistant, self-cleaning, etc.
- Connector: strong hot-dip galvanized steel
- Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius
- Wind Loading: max. 100km/h (can be reinforced)
- Snow Loading: 30kg/sqm
- Easy to be assembled and dismantled, moved from place to place.
- No pole inside, 100% available interior space.
Optional Accessories
- Windows: transparent PVC fabric, glass windows...
- Roof Shape: regular A shape, dome roof, polygonal, curved roof...
- Doors: PVC sliding doors, double-wing glass doors...
- Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall...
- Fixing Tools: steel anchors, weight plate, expandable bolts...
- Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
- Other Optional Items: printing, lighting, air conditioning, sports flooring, installation tools, etc.
Packing
- Aluminum frame packed in membrane film
- Hardware packed in solid carton box
- Roof and sidewall in a self-made PVC carry bag
- Tailor-made packing is available
