Black Frame Transparent Marquee Tent 15m X 10m For Product Promotion
15m x 10m Black Frame Transparent Marquee Tent for Product Promotion
There are lots of optional colors for our tents, including but not limited to white, black, transparent, yellow, blue, red, green, gray, orange, purple... If you want a special one, don't hesitate to let us know. WhatsApp number +86 139 2696 0292

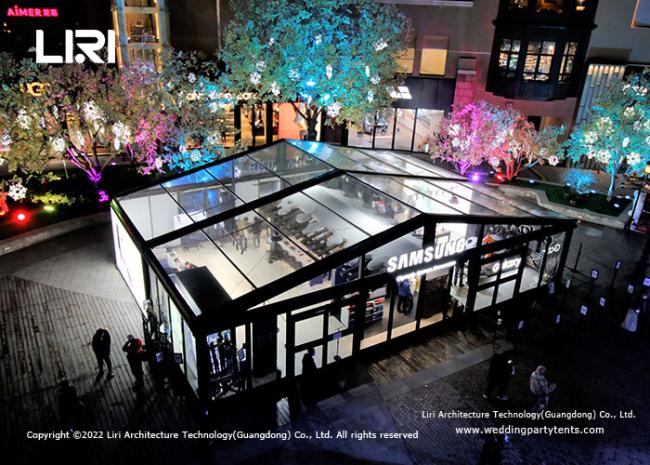

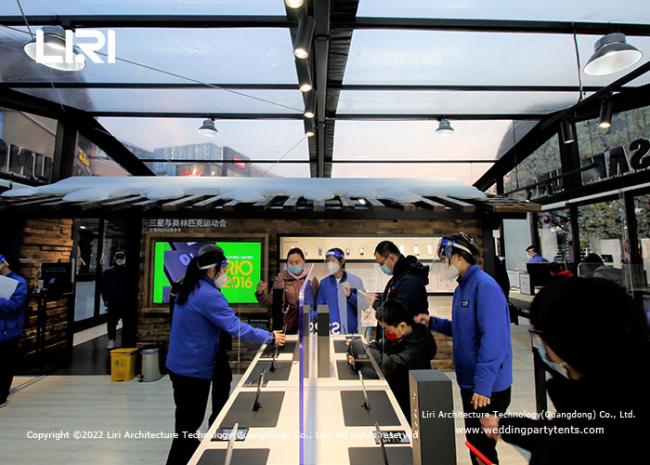

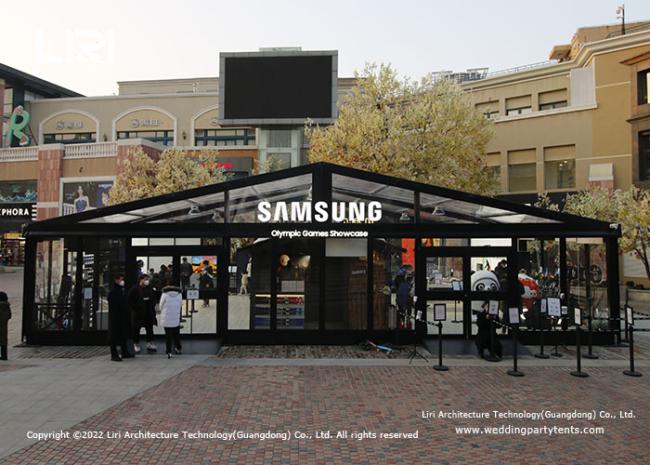

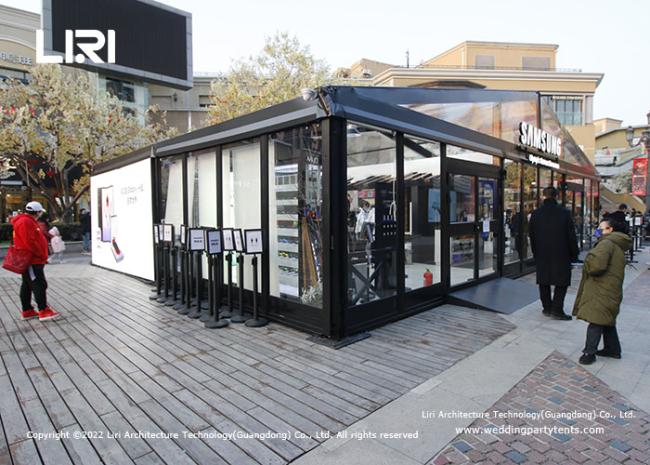

Attached is an #eventtent served as a temporary showroom. Black frames and transparent membranes give it a sense of elegance and make it more attractive to passersby. The tent and the showcase look even 'brighter' in the dark and in the snow.
| Dimension | Clear Span | Eave Height | Ridge Height | Bay Distance |
| NPT | 6m | 2.6m | 3.71m | 3m |
| NPT | 10m | 2.6m | 4.4m | 3m |
| ET | 15m | 3.3m | 5.62m | 5m |
| BT | 25m | 4m | 7.88m | 5m |
| EBT | 30m | 4m | 8.9m | 5m |
| TH | 40m | 5m | 10.4m | 5m |
| LH | 50m | 5m | 12m | 5m |
| Main Profile | 100x48x3mm, 204x120x4mm, 256x121x5mm, 300x120x5mm... | |||
Specifications & Features
- Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last over 20 years.
- Roof Cover: high-quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear-resistant, self-cleaning, etc.
- Connector: strong hot-dip galvanized steel
- Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius
- Wind Loading: max. 100km/h (can be reinforced)
- Snow Loading: 30kg/sqm
- Easy to be assembled and dismantled, moved from place to place.
- No pole inside, 100% available interior space.
Optional Accessories
- Windows: transparent PVC fabric, glass windows...
- Roof Shape: regular A shape, dome roof, polygonal, curved roof...
- Doors: PVC sliding doors, double-wing glass doors...
- Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall...
- Fixing Tools: steel anchors, weight plate, expandable bolts...
- Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
- Other Optional Items: printing, lighting, air conditioning, sports flooring, installation tools, etc.
Packing
- Aluminum frame packed in membrane film
- Hardware packed in solid carton box
- Roof and sidewall in a self-made PVC carry bag
- Tailor-made packing is available
