10m X 15m Outdoor Event Tents Transparent Live Shows Marquee 10m Side Height
10m x 15m Transparent Live Shows Marquee with 10m Side Height
10m x 15m Transparent Marquee with 10m Height for Live Shows

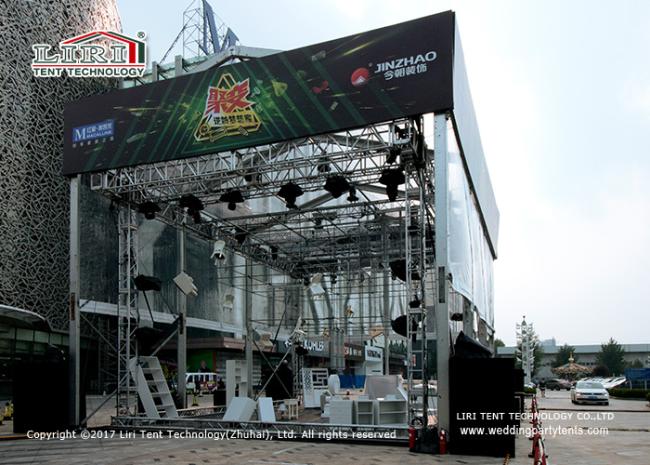

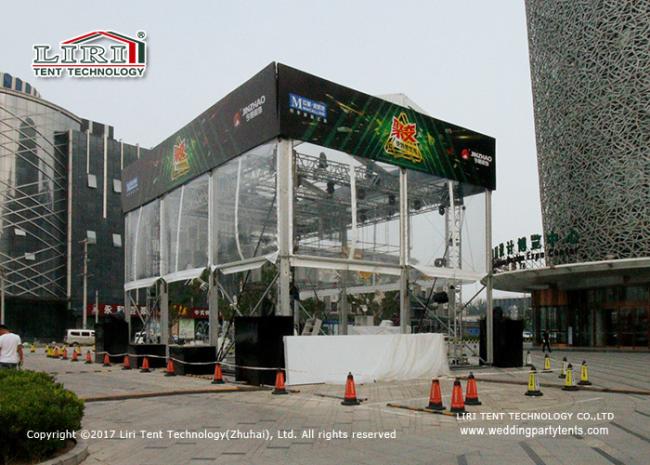

Recently, Liri Structure joined with a large construction machinery brand to build a large and sound impressive commercial tent. This tent adopts the aluminum alloy frame with a 15m clear span width and 6.6m eave height, without any interior support column. The natural light and surroundings can be seen inside the tent because of the clear glass walls design. The roof of the large commercial tent is double flat, with low noise and insulation. Last but not least, the eave edge with the Banner Ad slot provides a better Ad platform to clients. The space utilization of Double Decker for the commercial tent can be up to 200%, very suitable for various commercial events.
| Dimension | Clear Span | Eave Height | Ridge Height | Bay Distance |
| NPT | 6m | 2.6m | 3.71m | 3m |
| NPT | 10m | 2.6m | 4.4m | 3m |
| ET | 15m | 3.3m | 5.62m | 5m |
| BT | 25m | 4m | 7.88m | 5m |
| EBT | 30m | 4m | 8.9m | 5m |
| TH | 40m | 5m | 10.4m | 5m |
| LH | 50m | 5m | 12m | 5m |
| Main Profile | 100x48x3mm, 204x120x4mm, 256x121x5mm, 300x120x5mm... | |||
Specifications & Features
- Framework: hard-pressed extruded aluminum 6061/T6(15HW) which can last over 20 years.
- Roof Cover: high-quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear-resistant, self-cleaning, etc.
- Connector: strong hot-dip galvanized steel
- Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius
- Wind Loading: max. 100km/h (can be reinforced)
- Snow Loading: 30kg/sqm
- Easy to be assembled and dismantled, moved from place to place.
- No pole inside, 100% available interior space.
Optional Accessories
- Windows: transparent PVC fabric, glass windows...
- Roof Shape: regular A shape, dome roof, polygonal, curved roof...
- Doors: PVC sliding doors, double-wing glass doors...
- Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall...
- Fixing Tools: steel anchors, weight plate, expandable bolts...
- Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
- Other Optional Items: printing, lighting, air conditioning, sports flooring, installation tools, etc.
Packing
- Aluminum frame packed in membrane film
- Hardware packed in solid carton box
- Roof and sidewall in a self-made PVC carry bag
- Tailor-made packing is available
