35m x 40m Warehouse Industrial Storage Tent With Sliding Door
35m x 40m Industrial Storage Tent With Sliding Door For Warehousing

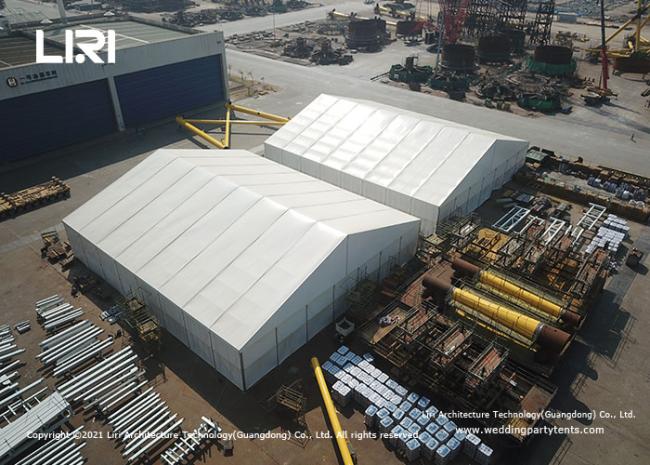

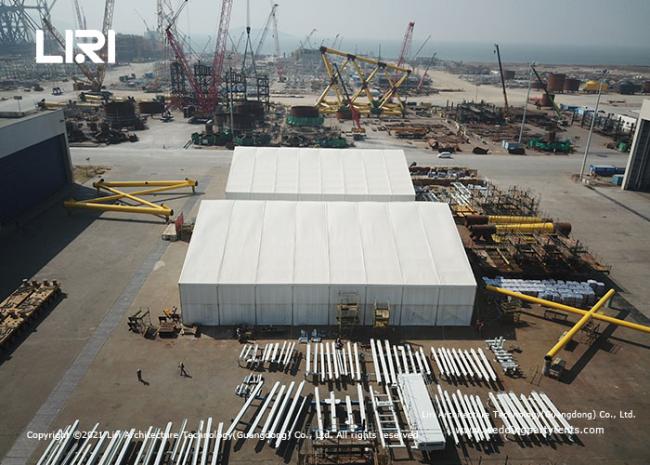

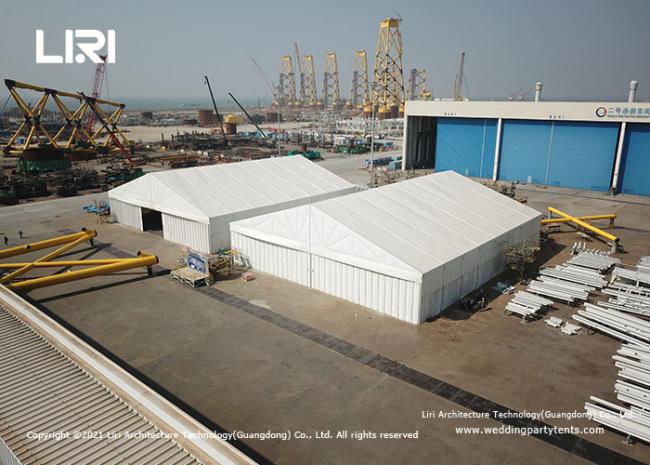

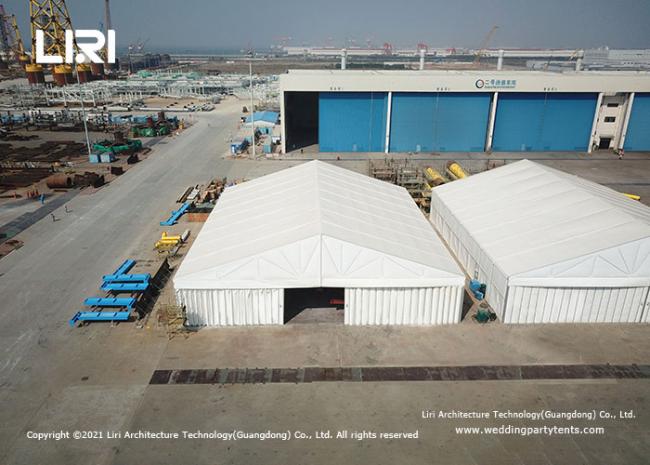

These are two tailor-made 35m x 40m industrial tents with 6m eave height, used as semi-permanent warehouses and workshops. They are equipped with soft shutter doors and soft sliding doors to make it easier for equipment in and out. The block-out and translucent PVC membrane on the roof let the direct sunlight in, saving lots of energy.
>> Specifications of Our Industrial Storage Tent
Frame: hard-pressed extruded aluminum 6061/T6(15HW) which can last more than 20 years.
Fabric cover: high-quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
Connector: strong hot-dip galvanized steel
Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
Wind load: max. 100km/h (can be reinforced)
Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
Easy to be assembled and dismantled, movable.
No pole inside, 100% available interior space.
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
| BT | 15m/49.2' | 5m/16.4' | 3.88m | 6.30m | 204x120x4mm(4-channel) |
| BT | 20m/65.6' | 5m/16.4' | 3.88m | 7.10m | 204x120x4mm(4-channel) |
| BT | 25m/82' | 5m/16.4' | 3.88m | 7.80m | 204x120x4mm(4-channel) |
| EBT | 20m/65.6' | 5m/16.4' | 3.92m | 7.20m | 256x121x5mm(4-channel) |
| EBT | 25m/82' | 5m/16.4' | 3.92m | 8.0m | 256x121x5mm(4-channel) |
| EBT | 30m/98.4' | 5m/16.4' | 3.92m | 8.9m | 256x121x5mm(4-channel) |
| The length can be extended by 5m bay such as 15m,20m,30m,40m...Customized size or shape is available. | |||||
>> Accessories for Our Industrial Storage Tent
Covers: colorful cover, transparent cover, inflatable roof cover
Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
Wooden Flooring System: VIP cassette flooring, simple cassette flooring
Doors: double-wing glass door, single-wing glass door, glass fire door, aluminum door, rolling shutter(automatic or manual)
Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
Fixing Methods: ground anchors, weight plate, expandable bolts
Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
Other Optional Items: table, chair, lighting, AC, carpet, installation tools, etc.
>> Packaging of Our Industrial Storage Tent
aluminum frame packed in membrane film
hardware packed in a solid carton box
roof and sidewall in a professional PVC carry bag
>> Certificates of Our Industrial Storage Tent
National High-tech Enterprises
ISO 9001:2008 Quality Control Standards
IFAI Certificate of Membership
American Rental Association Associate Membership
Practical Type Patent Certificate
Liri Tents Trade Mark Certificate
>> Tent Series
Tent Roof Type |
Span Width | Bay Distance | Eave Height |
| Regular | 3m~60m | 3m/5m | 2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m |
| Dome | 3m~40m | 3m/5m | 2.6m/3m/3.23m/3.88m/3.92m |
| High Peak | 3m~10m | 3m/4m/5m/6m/8m/10m | 2.5m/2.6m |
| Curve | 15m~40m | 5m | 3.87m/3.89m |
| Polygon | 10m~60m | 5m | 4m |
| Double Decker | 10m~30m | 5m | 5m |
