Lightweight UV & White light Optional 110V 220V Battery Powered AC Battery Electromagnetic Yoke

The HCDX-Y series is a durable, high-strength AC, AC/DC, DC magnetic yoke designed to detect surface and sub-surface indications in the most rugged applications.

Featuring sealed chemical-resistant construction, articulating legs to contour to any part shape and robust strain-relieved twelve-foot cord for field use, the HCDX-Y is ideal for inspection of welds and other remote testing.

This instrument conforms to the standard requirements of JB/T7411-2012, ASME BPVC,ASTM E709,ASTM E1444,ASTM E3024."electromagnetic yoke flaw detector technical condition".

Product features

Sealed, durable construction

Chemical and abrasion resistant

AC and DC operation options for surface and sub-surface inspection

Exceeds ASTM lifting specifications

The three modes of power supply can be freely chosen:

There are places directly connected to AC power supply, which can be directly connected with AC power supply.

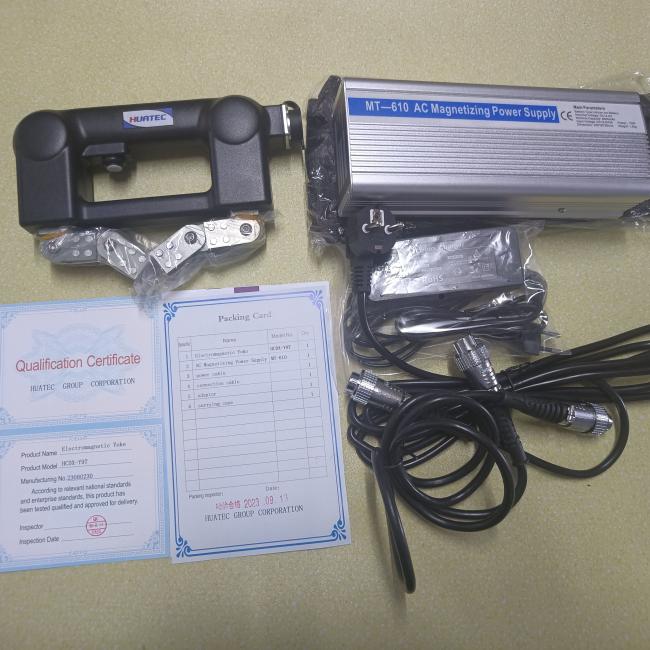

It is possible to use AC magnetized power supply (DC-AC inverter battery pack) to supply AC power without any direct insertion to AC power supply.

The DC magnetizing power supply (DC battery pack) can be used to realize the DC magnetization function.

AC magnetizing power supply (DC-AC inverter battery pack) has the functions of voltage regulation, overcharge, over current and over discharge.

When the lifting force is not enough, the power is automatically cut off to ensure the sensitivity of flaw detection.

The power display function can display the current battery power, and has the function of sound and light alarm.

Built in microcomputer chip to stabilize output voltage and ensure detection sensitivity.

Adjustable magnetization

Special working waist bag can carry battery pack, magnetic suspension, contrast agent, yoke probe, etc.

Model guide

FEATURES

• Ergonomic, light-weight design

• IP54 sealed housing resists dust and water

• Field-swappable power cord

• Isolated, replaceable trigger switch

• Steel shields for leg protection

• Exceeds ASTM lifting specifications

• Convenient carrying case supplied with all yoke shipments

• Optional LED UV & White yoke light lasts longer and is more intense compared to traditional bulbs

• Two power supply modes are optional:

  110V/220V/240V Single-phase AC power supply (straight plug mode);

  DC magnetization power supply (DC battery pack with digital display screen)

• Optional special waist pack can carry magnetized power battery, magnetic suspension, contrast agent etc.

APPLICATIONS

Defect location: Surface Ideal for:

• Field Testing

• Difficult to reach areas

• Spot, weld and in-service inspections Defect examples:

• Seams

• Tears

• Shrink cracks

• Quenching cracks

• Fatigue cracks

SPECIFICATION COMPLIANCE

JB/T7411-2012

ASTM E1444-05

ASTM E709

EN10228-1:1999

ISO 9934

ASTM E 3024
