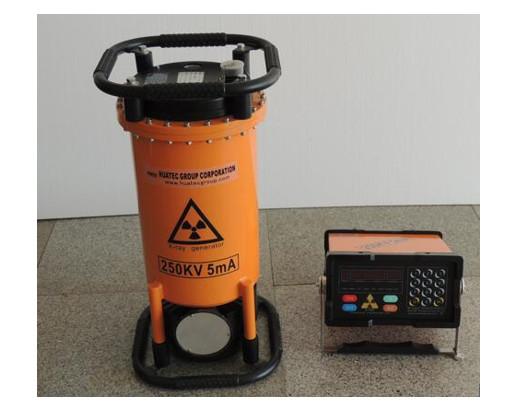

250KV NDT Industrial Directional X-Ray Equipment With Ceramic Welding Inspection X-Ray Tube
250KV NDT Industrial Directional X-ray Equipment with Ceramic Welding Inspection X-ray Tube XXG2505
X-Ray flaw detector is use of microcomputer control, intelligent design, modular structure, high degree of automation,
reliable work.
All the internal components are made of high reliable device. The structure is reasonable, the
appearance is beautiful, the volume is small and the weight is light.
|
TYPE ITEM |
XXG2505 | ||
| Max Penetration thickness Steel (A3) | 40mm | ||
| Focal Distance | 600mm | ||
| Exposure Time | 5min | ||
| Film Type | TianJin Ⅲ | ||
| Double lead foil Intensifying screen | 0.03 | ||
| Darkroom Disposal | 20±2℃ | ||
| Development | 5minutes | ||
| Blackness | 1.5 | ||
| Input | Voltage (V) | 220V±10% 50―60Hz | |
| Capacity (KVA) | 2.5 | ||
| Output | Tube voltage (KVP) | 50-200 | |
| Tube current (mA) | 5 | ||
| Stability | ±1% | ||
|
X-RAY Tube |
Focus mm2 | 1.0×20. | |
| Radiation Angle | 40±5° | ||
| Sensitivity | k≤1.8% | ||
| Operation Mode | Intermittent operation, Radiating time to cooling time is 1:1 | ||
|
X-Ray Controller |
Dimension | 350×290×160 | |
| Weight | 11kg | ||
| Circuit Structure | Micro-computer control ,Modular structure,Voice prompt | ||
|
X-RAY Generator |
Cooling | Force air cooling | |
| Insulation | SF6 Gas Insulation | ||
| Working Pressure | 0.35Mpa-0.45Mpa | ||
| Dimension | 320×320×650 | ||
| Weight (kg) | 30.5kg | ||
| Working Temperature | -10℃―+40℃ | ||
The water and dust proof color panel and digital sound keyboard are introduced that exposure parameters are promptly and accurately selected.
Ensure safety using the instrument,it is installed with overvoltage,undervoltage,
overcurrent,undercurrent and overtemperature protection device.
A unique safety lock is designed that protect the operator from the damage of radiation.
