Measurement 0 mm ~6000mm FD510 Portable Ultrasonic Flaw Detector NDT Instrument

Measurement 0 mm ~6000mm FD510 Portable Ultrasonic Flaw Detector NDT Instrument

This is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a workpiece without destruction. It can be used both in a lab and field. The instrument can be widely used in any fields that need defect inspection and quality controlling e.g. manufacturing industry, iron & steel metallurgical industry, metalworking, chemical industry, etc., also be broadly used in the active safety inspection and service-life evaluation in such fields as aerospace, railway transportation and boiler pressure vessels, etc. It is an essential instrument for non-destructive inspection industry.

When the ultrasonic wave propagates in a job, one can detect the defect in it by the influence on the propagation of ultrasonic wave based on the acoustic characteristic demonstrated by the defect in the material. Based on this principle, by using ultrasonic wave one can measure such defects as crack, pinhole and inclusion in such media as metal, non metal and composite, etc.

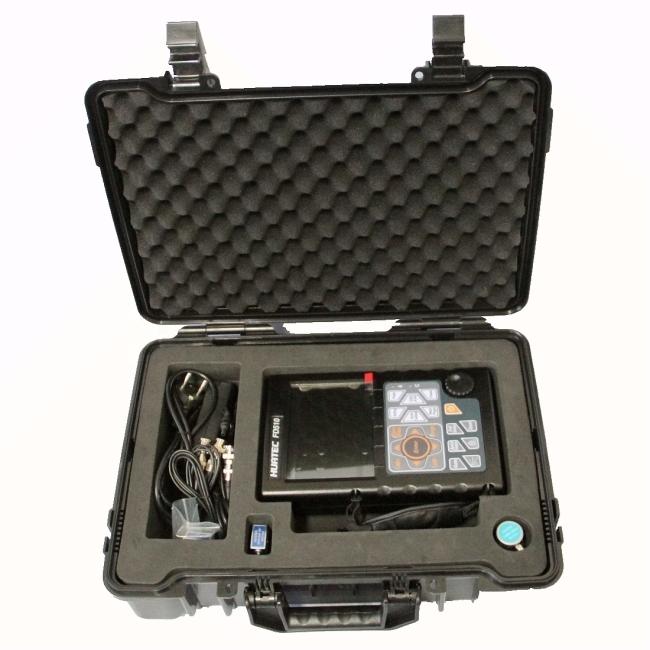

Standard Configuration

Options

Technical Parameters

Range of scanning: 0 mm ~6000 mm

Resolution for scanning: 0.1mm (2.5mm ~100mm)

1mm (100 mm ~6000mm)

Range of gain: 0dB ~110 dB

D-Delay: -20µs～+3400µs

P-Delay: 0µs～99.99µs

Sound speed: 1000 m/s～15000m/s
