China Carbon Steel UT Calibration Blocks 25mm Thickness For Accurate Measurements for sale

Carbon Steel UT Calibration Blocks 25mm Thickness For Accurate Measurements

Price Negotiable
Price: Negotiable
MOQ: 1pc
Delivery Time: Negotiable
Brand: HUATEC
Product Description

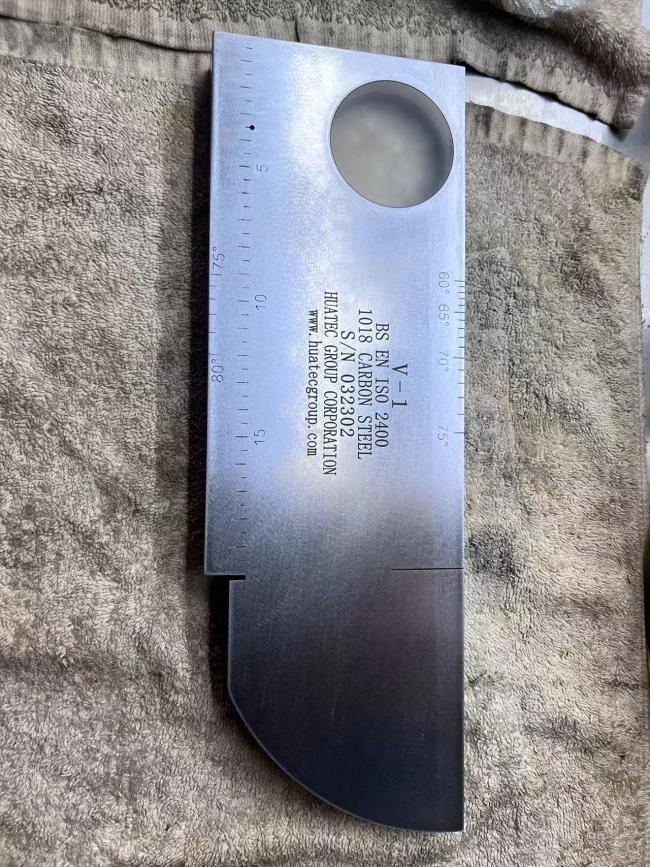

IIW V1 calibration block

Standard: ISO2400-1972E



Product Name IIW V1 calibration block
Material  carbon steel,304,Super Duplex

Test block thickness

 25mm

Hole

 1.5mm
Arc 50

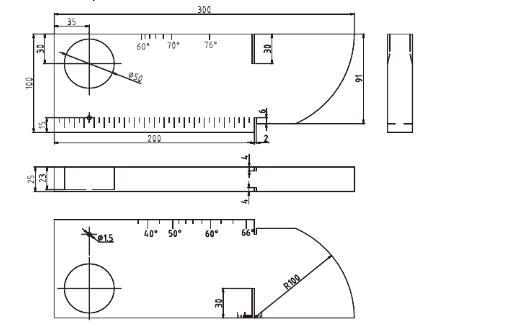

IIW test block (V-1 test block) is also called Dutch test block. It is an international standard test block approved by the International Welding Institute (IIW) and recommended by the International Organization for Standardization (ISO). The shape and size are shown in Figure 1-1:
