TG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness Gauge

Price Negotiable

Price: USD380-USD430/SET

MOQ: 1 SET

Delivery Time: 7-10 working days after receipt of your payment

Brand: HUATEC

Product Description

TG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness Gauge

Features

* Using the latest high performance and low power consumption microprocessor technology.

* Automatic memory material code and sound velocity value, convenient to use.

* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth ™ data output”

Specifications

Display	4 Digit, 10 mm LCD
Operating Principle	Ultrasonic
Measuring Range (metric / Imperial)	0.75~400mm (45# steel) (Depend on Probe)
Battery Indication	Low Battery Indication
Sound Velocity	1000~9999 m/s
Lower Limit Steel Pipes	Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer
Calibration Block	Included
Resolution	0.1mm / 0.01mm / 0.001inch
Accuracy	± (0.5%n + 0.1)
Power off	Auto Power off & Manual Power Off
Operating Conditions	Temperature: 0~40 °C, Humidity: < 85 %RH
Power Supply	4 x 1.5 V AAA (UM-4) Battery
Dimensions	140 x 72 x 34 mm
Weight	185 g (Not Including Batteries)

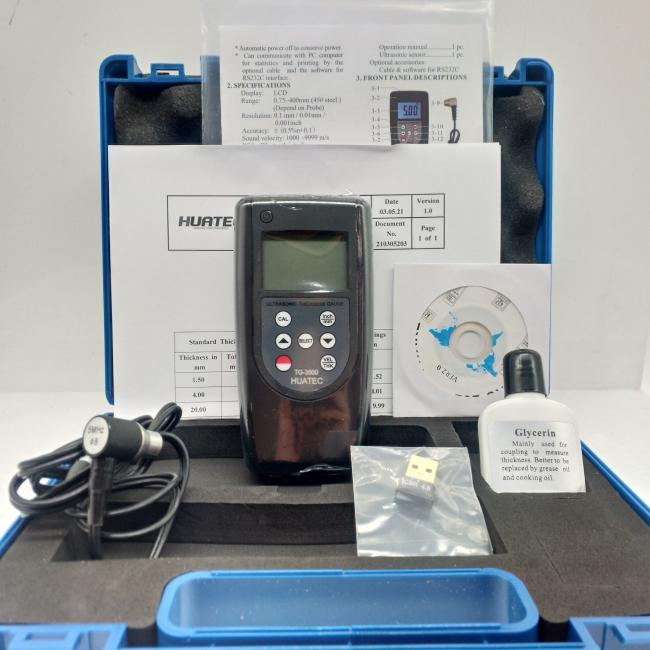

Standard Delivery:

1. Main Unit

2. 5MФ8 Standard Sensor

3. Coupling Agent

4. Carrying Case

5. Operating Manual

Optional Accessories:

1. 6M Φ6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C

2. 5M Φ12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C

3. Curved Surface Probe

4. USB, RS-232C data cable with software

5. Bluetooth data output with software
