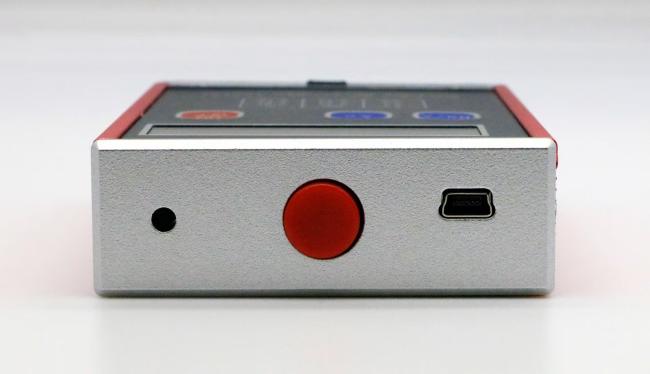

SRT-5000B Ra, Rz, Rt, Rq Pocket-Sized Hand-held Surface Roughness Tester
SRT-5000B Ra, Rz, Rt, Rq Pocket-Sized Hand-held Surface Roughness Tester
General Introduction
Pocket-Sized Surface Roughness Tester SRT-5000B is a new generation of Surface Roughness Tester Series. It features high accuracy, wide application, simple operation, portability and stable performance. The tester is widely used in measuring the surface roughness of various metals and non-metals. Its integrated structure of sensor and main body and hand-held design make it suitable to be used in production sites.
- Possess Ra, Rz, Rt, Rq.
- Pocket-sized, easy to carry, anti-shock and vibration.
- One point calibration is simple and easy to use, and can be quickly completed by the user.
- Piezoelectric ceramic sensor, firm and durable.
- 256*64 OLED display with high brightness, low power consumption and exquisite font display.
- Large capacity rechargeable lithium battery, long working time.
- Possess 0.25, 0.8, 2.5three kind of sampling length.
- Metal shell, strong anti-interference ability.
- Conform to GB, ISO, DIN and JIS standards.
- High speed DSP chip, high computing speed.
- Rapid calculating speed, only takes 2s to complete calculation after measurement stroke.
Technical Parameters
Working Principle
When the sensor was driven by a driver to make a linear uniform motion along the testing surface, the stylus which touches with the work surface moves up and down along the work surface perpendicularly. Its motion is converted into electric signals, which are amplified, filtered and transformed into digital signals through A/D. The signals are then processed by CPU into Ra, Rz, Rq and Rt values and then displayed on the screen.
Recommended Sampling Length Table
| Ra (µm) | Rz (µm) | Sampling Length λc (mm) |
| >5~10 | >20~40 | 2.5 |
| >2.5~5 | >10~20 | |
| >1.25~2.5 | >6.3~10 | 0.8 |
| >0.63~1.25 | >3.2~6.3 | |
| >0.32~0.63 | >1.6~3.2 | |
| >0.25~0.32 | >1.25~1.6 | 0.25 |
|
>0.20~0.25 >0.16~0.20 |
>1.0~1.25 >0.8~1.0 |
|
|
>0.125~0.16 >0.1~0.125 >0.08~0.1 |
>0.63~0.8 >0.5~0.63 >0.4~0.5 |
|
|
>0.063~0.08 >0.05~0.063 >0.04~0.05 |
>0.32~0.4 >0.25~0.32 >0.2~0.25 |
|
|
>0.032~0.04 >0.025~0.032 >0.02~0.025 |
>0.16~0.2 >0.125~0.16 >0.1~0.125 |
Packing List
| Part | Quantity | Note | |
| Standard | Host SRT-5000B | 1 | |
| 5V ac power adapter | 1 | ||
| USB cable | 1 | ||
| Operating manual | 1 | ||
| Warranty card | 1 | ||
| Calibration certificate | 1 | ||
| Packing list | 1 | ||
| Qualified certificate | 1 | ||
| Equipment case | 1 | ||
| Optional | Standard sample template | 1 | |
| Glass support | 1 |
