Gamma X-ray Tungsten Lead Collimator Precision Tool For Radiation Treatment Planning

Price Negotiable

MOQ: 1 pc

Delivery Time: 7-10 working days after receipt of your payment

Brand: HUATEC

Product Description

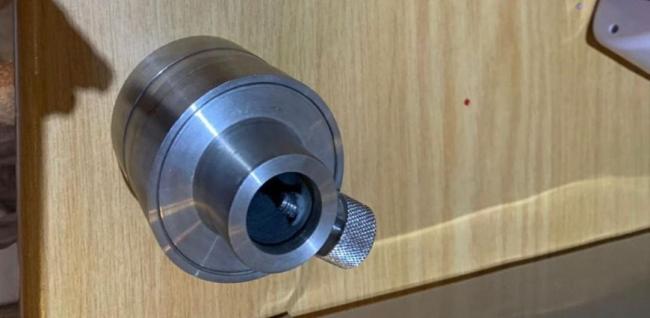

Gamma X-ray Tungsten Lead Collimator

Collimators contain and direct the beam of radiation during exposure. A wide range of collimators have been developed to meet the variety of applications and techniques used.

DESCRIPTION	WEIGHT	BEAM SIZE	ATTENUATION	HALF VALUE LAYERS	ITEM NO.
Tungsten	1.75Ib (0.79kg)	60°Conical,side throw	Ir-192:0.05 Co-60:0.46	Ir-192:4.30 Co-60:1.12	TCN799
	4.3 Ib (1.95kg)	60°Conical,side throw	Ir-192:0.009 Co-60:0.26	Ir-192:6.80 Co-60:1.90	TCN827
	9.5 Ib (4.32kg)	60°Conical,side throw	Ir-192:0.003 Co-60:0.17	Ir-192:8.30 Co-60:2.50	TCN828
	4.3 Ib (1.95kg)	20°x360°panoramic	Ir-192:0.0045 Co-60:0.18	Ir-192:7.80 Co-60:2.40	TCN846
Lead	3 Ib (1.36kg)	60°Conical,side throw	Ir-192:0.014 Co-60:0.32	Ir-192:6.20 Co-60:1.70	TCN714
Large Lead Collimator	3 Ib (1.36kg)	60°Conical,side throw	Ir-192:0.014	Ir-192:6.20	TCN717
Lead Colliator with Lab Stand & Inserts	32 Ib (14.5kg)	20°x360°panoramic 60°directional	Ir-192:0.001 Co-60:0.10	Ir-192:10.0 Co-60:3.30	TCN527
527 Collimor Only	32 Ib (14.5kg)	20°x360°panoramic 60°directional	Ir-192:0.001 Co-60:0.10	Ir-192:10.0 Co-60:3.30	52710
360° Panoramic Inseit		20°x360°panoramic			52704
60° Directional Insert		60°directional			52711
