Directional Ceramic Tube 250K Portable X Ray Flaw Detector For Welding

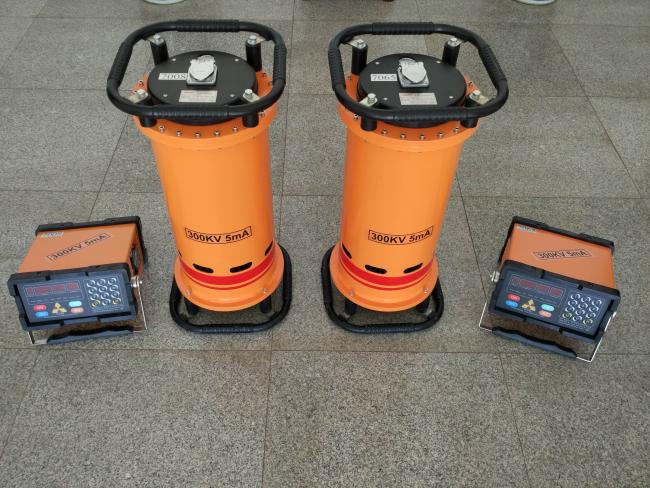

Portable X-ray Flaw Detector with Directional Ceramic Tube 250K X-ray Detector for Welding
Normal generator size is 320x320x630mm, weight 29kgs.
Adopting micro-computer control and modular structure, with strong anti-interference ability and high automaticity and reliable performance.
Parameter setting, working process and trouble indication will be indicated on the LED screen.
Main technical parameters
|
TYPE ITEM |
XXG2505 | ||
| Max Penetration thickness Steel (A3) | 40mm 5minutes | ||
| Focal Distance | 600mm | ||
| Exposure Time | 5min | ||
| Film Type | Agfa D7 | ||
| Double lead foil Intensifying screen | 0.03 | ||
| Darkroom Disposal | 20±2℃ | ||
| Development | 5minutes | ||
| Blackness | 1.5 | ||
| Input | Voltage (V) | 220V±10% 50-60Hz | |
| Capacity (KVA) | 2.0 | ||
| Output | Tube voltage (KVP) | 100-250 | |
| Tube current (mA) | 5 | ||
| Stability | ±1% | ||
|
X-RAY Tube |
Focus mm2 | 2.0×2.0 | |
| Radiation Angle | 40±5° | ||
| Sensitivity | k≤1.8% | ||
| Operation Mode | Intermittent operation, Radiating time to cooling time is 1:1 | ||
|
X-Ray Controller |
Dimension | 270×270×140 | |
| Weight | 9kg | ||
| Circuit Structure | Micro-computer control ,Modular structure,Voice prompt | ||
|
X-RAY Generator |
Cooling | Force air cooling | |
| Insulation | SF6 Gas Insulation | ||
| Working Pressure | 0.35Mpa-0.45Mpa | ||
| Dimension | 320×320×630mm | ||
| Weight (kg) | 29kg | ||
| Working Temperature | -10℃-+40℃ | ||

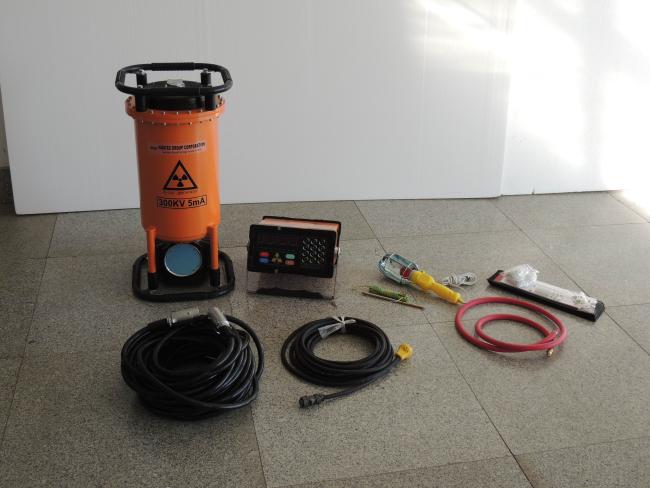

Standard Delivery
| Directional ceramic X-ray tube | 1 Pcs | |
| Generator | 1 Set | |
| High voltage joins cable | 1 Pcs | 25 Meters |
| Controller | 1 Set | |
| Power cable | 1 Pcs | 10 Meters |
| Grounding cable | 1 Pcs | 5 Meters |
| Accessories | 1 Set | |
| (Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc) | ||
Optional accessories:
Testing platform, IQI/wire penetrameter, lead letter/digits, lead tape, Cassette, lead screen, personal dosimeter, film viewer, densitometer, film developer, dark room light, RT calibration block etc.
