DR Flat Panel H1719HDA-GZ Sensor For Dental Imaging And Industrial Inspection
H1719HDA-GZ It is an amorphous silicon based sensor suitable for dental imaging and industrial inspection
Sensor
Receptor Type IGZO
Scintillator CsI:TI
Active Area 165.8 x 183.8 mm
Resolution 1386 x 1536
Pixel Pitch 120 μm
Power Supply & Battery
Adapter In AC 100-240V,50-60Hz
Adapter Out DC 24V,2.7A
Power Dissipation <20 W
Limiting Resolution 4.2 LP/mm
Energy Range 20-160 KV
Dynamic Range ≥76 dB
| Category | Parameter | Details |
|---|---|---|
| Electricals and Interface | A/D Conversion | 16 bits |
| Data Interface | Gigabit Ethernet | |
| Frame Rate | 20 fps | |
| Exposure Control | Software/Outer | |

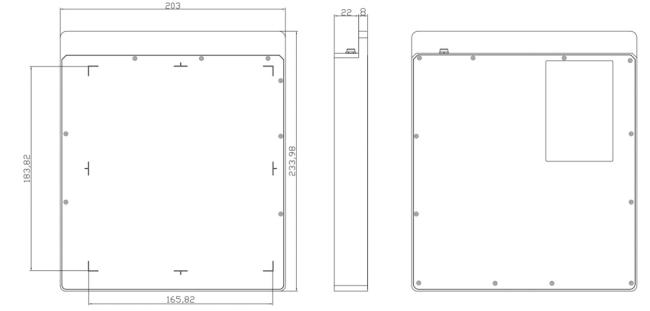

| Mechanical | Dimension | 203×234×22.8 mm |
| Weight | 1.8 g | |
| Material | Aluminum and magnesium alloys | |
| Front Panel | Carbon fiber | |
| Environmental | Temperature | 10–35°C (operating); –10–50°C (storage) |
| Humidity | 30–70% RH (non-condensing) | |
| Ingress Protection | IP51 |
Electricals and interface
A/D Conversion 16 bits
Data Interface Gigabit Ethernet
Frame rate 20fps
Exposure Control Software/Outer
Mechanical
Dimension 203×234×22.8 mm
Weight 1.8g
Material Aluminum and magnesium alloys
Front Panel Carbon fiber
Enviromental
Temperature 10-35°C (operating)；-10~50°C (storage)
Humidity 30-70% RH (non-condensing)
Ingress Protection IP51
