Defects as Crack Pinhole and Inclusion In Metal Non Metal and Composite Ultrasonic Flaw Detector
Price:
Negotiable
MOQ:
1set
Delivery Time:
5~8 days after your payment
Brand:
HUATEC

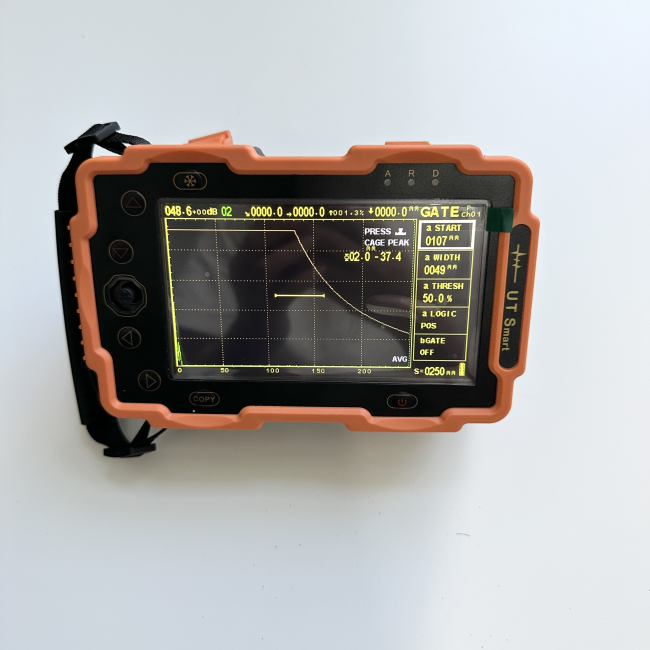

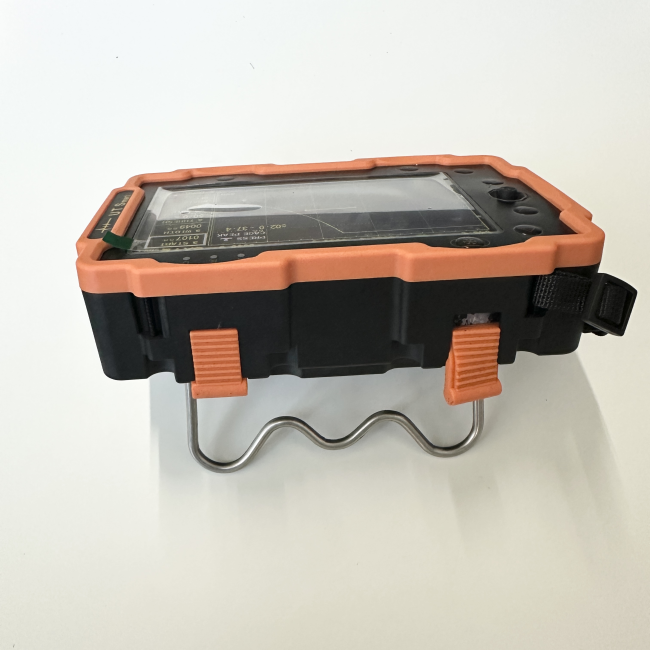

Product Description
Defects as Crack Pinhole and Inclusion In such Metal Non Metal and Composite Ultrasonic Flaw Detector
When the ultrasonic wave propagates in a job, one can detect the defect in it by the influence on the propagation of ultrasonic wave based on the acoustic characteristic demonstrated by the defect in the material. Based on this principle, by using ultrasonic wave one can measure such defects as crack, pinhole and inclusion in such media as metal, non metal and composite, etc.
Technical Parameters
| Item | Technical Data |
| Range of scanning (mm) | Range of scanning (mm):0～1000 |
| D-delay (ms) | D-delay (ms):0～5000 |
| MTLVEL(m/s) | MTLVEL:1000～9999 |
| Working mode | Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe) |
| Frequency Range (MHz) | 0.5~10 |
| Gain adjustment (dB) | 0～110 |
| Reject | 0%～80% of screen height |
| Vertical linear error | Vertical linear error is not more than 3% |
| Horizontal linear error | Not more than 0.1% in the scanning range |
| Sensitivity Leavings | ≥50 dB |
| Dynamic range | ≥36dB |
| Alarm | Three modes, i.e. forbidden wave, loss wave and auto |
| A-Scan display area |
Full screen or local A-Scan display freezing and de-freezing A-Scan filling |
| Data save | 500 A-Scan images (including setting of instrument) |
| Standard communication interface with PC | USB |
| Measuring unit | mm/inch |
| Battery | Li battery 3.6V 3000mAh * 4 |
| Power adaptor | 4.2V DC 220AC |
| Working temperature | -20℃～50℃ |
| Working humidity | 20%～90% |
| Port type | LEMO |
| Overall dimension (mm) | 162×105×42 |
| Weight (kg) | 0.68 (include Li-ion battery) |
Performance Features
- The dual CPUs work in coordination, high speed detecting and data processing；
- Automatic calibration；
- Easy tests of thickness and sound velocity of materials;
- Freely set standards for various industries to meet different flaw detection
- Automated display precise flaw location(Depth d,level p,distance s,amplitude,dB,diameter ф)；
- Freely set standards for various industries to meet different flaw detection；
- The echo suppression is adjustable from 0 to 90%, without affecting the dB gain and linearity；
- DAG and AVG(DGS) curves are generated automatically;
- Muti-functions for easy detection: peak memory, Display freeze, automatic gain & wave search；
- Li -battery, continue working time up to 10 hours;
- Storage: 500 sets of flaw detection process and data storage;
- Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles;
- USB connects to computer,automatically generate flaw detection report;
Standard Configurations and Options

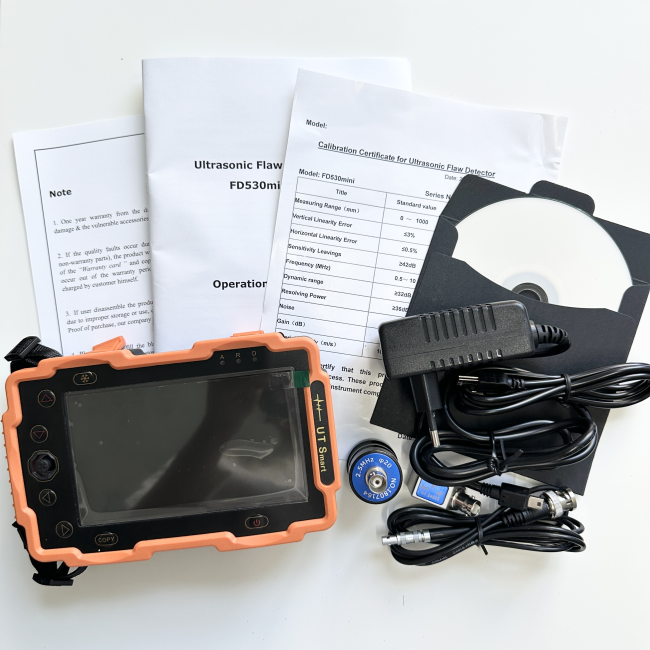

Standard Configuration
|
Designation |
Quantity |
|---|---|
| Main unit | 1 |
| 4.2V power adaptor | 1 |
| probe connecting cable | 1 |
| Carrying case | 1 |
| Instruction manual | 1 |
| Straight probe | 1 (Dia 20mm, 2.5MHz) |
| Angle probe | 1 (13×13, 60°, 2.5MHz) |
Options
|
Designation |
Quantity |
|---|---|
| Communication software for PC | 1 set |
| Other probes | Straight/ Angle/ Dual types for option |
