Set of 19 Distance (MTD) and Signal Amplitude Flat-bottom Hole Blocks

Price Negotiable

Price: USD1495-USD1690/SET

MOQ: 1 SET

Delivery Time: 7-10 working days after receipt of your payment

Brand: HUATEC

Product Description

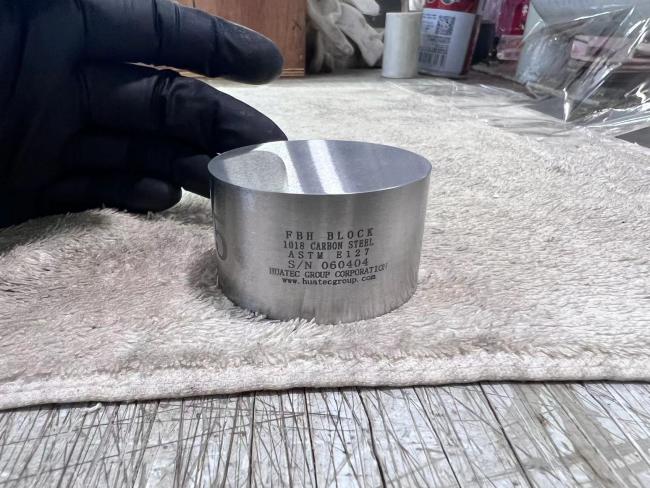

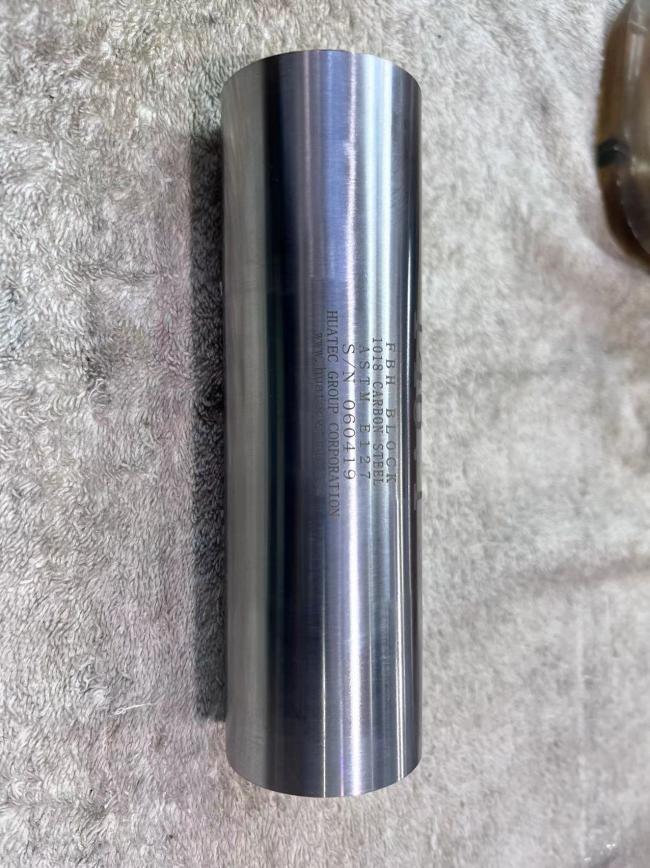

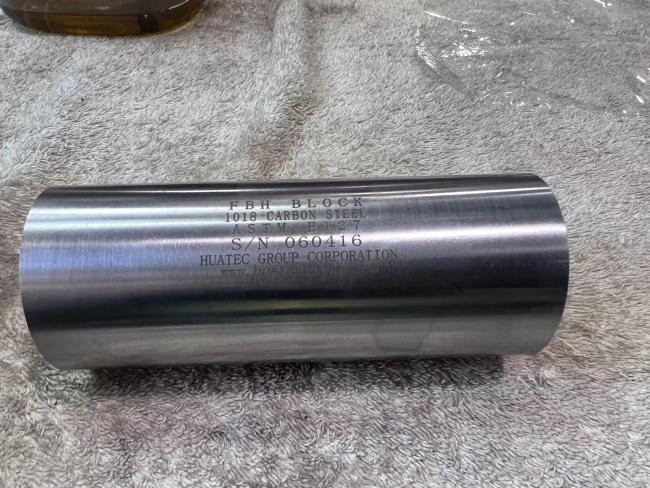

Set of 19 Distance (MTD) and Signal Amplitude Flat-bottom Hole Blocks

Set of 19 flat-bottom hole blocks used to determine the relationship between metal travel distance (MTD) and signal amplitude.

Geometry:

hole diameters and metal travel distances

3/64", 5/64" or 8/64" with metal travel distances of: 0.06", 0.12",0.25",0.37",0.50", 0.62",0.75",0.87",1.0",1.25", 1.75", 2.25", 2.75", 3.25", 3.75", 4.25", 4.75", 5.25" and 5.75".

*Please specify either 3/64", 5/64" or 8/64" hole sizes for the whole set when ordering.
