MT Inspection Magnetic Yoke Weight Lift Test Bar

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 5-8 days after payment

Brand: HUATEC

Product Description

MT Inspection Magnetic Yoke Weight Lift Test Bar

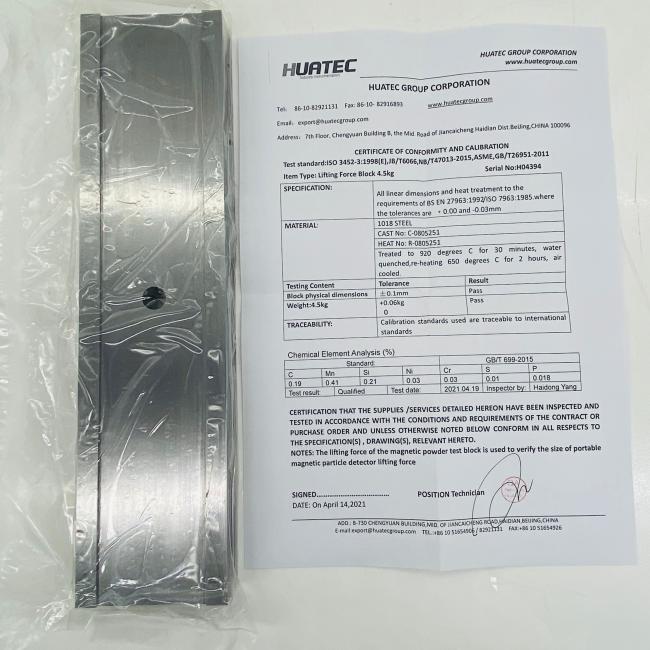

The Yoke Test Weight is a certified 10 lb / 4.5 kg weight designed specifically for AC magnetic yokes to confirm the yoke has sufficient strength to perform magnetic particle inspections. Each Yoke Test Weight has a built-in leg positioning guide to assure balanced distribution and accurate test results.

Use the Yoke Light and Yoke Test Weight to improve your mag particle inspections with Magnaflux HCDX-Y2 and HCDX-Y9 electromagnetic yokes.

Standard	ASME JB/T6066-2005
Material	No. 45 steel
Type of blank	forging
Heat treatment state	normalizing treatment

N1 type	45N lifting force test block	5KG
N2 type	118N lifting force test block	12KG
N3 type	177N lifting force test block	18KG
