HCDX-Y45 Series Portable AC DC Magnetic Yoke with UV & White Light for Magnetic Particle Testing
HCDX-Y45 Series Portable AC DC Magnetic Yoke with UV & White Light for Magnetic Particle Testing
Uv lamp intensity: ≥5000uw/cm²
White lamp intensity: ≥1450Lux
HCDX-Y45 Portable AC Magnetic Yoke Flaw Detector with White Light
HCDX-Y45DC Portable AC&DC fluorescent magnetic yoke Flaw detector with White light and UV light
HCDX-Y45Z Portable AC fluorescent magnetic Yoke Flaw detector with White light and UV light
1. Product introduction
• The probe can choose two lighting modes: ultraviolet lamp and white lamp.
• The probe weight is only 2.0kg, suitable for long time magnetic particle detection work.
• Working mode: AC and DC (for model HCDX-Y45DC)
• AC operation: The probe is connected to AC220V power supply for flaw detection.
• DC operation: The probe can be connected to the battery for DC operation.
2. Technical parameters
| Sensitivity | A1 15/100 standard test piece; Clear display of defect |
| Power supply |
HCDX-Y45: AC220V HCDX-Y45DC: AC220V and DC12V HCDX-Y45Z: AC220V |
| Probe pole distance | 40mm-200mm |

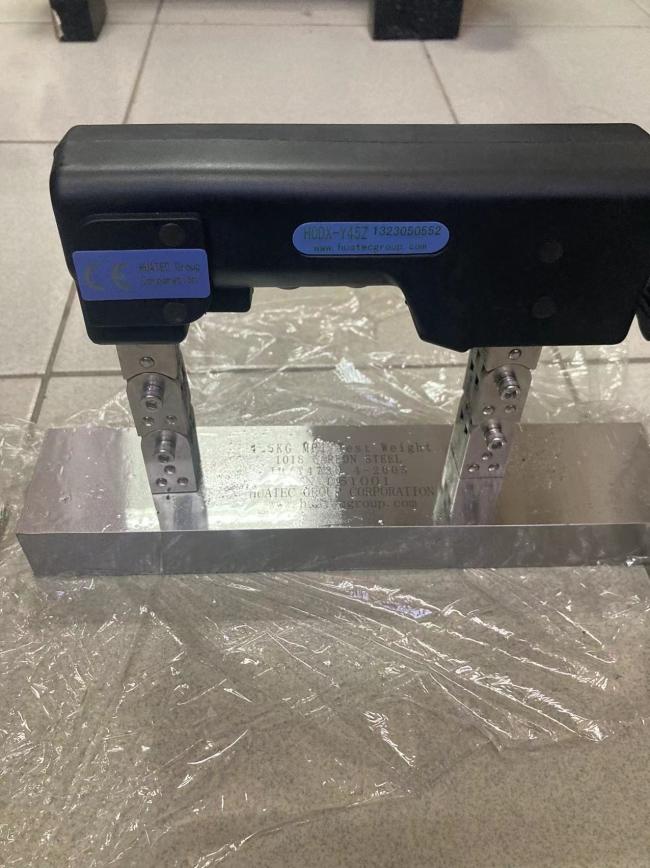

| Lifting force | AC≥45N DC≥177N |
| Illumination of white lamp | ≥1450Lux (only when connected to AC) |
| UV lamp intensity | ≥5000uw/cm²(HCDX-45DC and HCDX-Y45Z has this function) |
| Machine size | 210mm (length) *48mm (width) *150mm (height) |
| Yoke weight | 2.0 kg |
3. Configuration
HCDX-Y45 configuration
• Host with type D yoke probe 1 unit
• White lamp 1 pc
• AC power cable 1 pc
• Instruction manual 1 pc
• Calibration certificate 1 pc
• Instrument case 1 pc
HCDX-Y45DC configuration
• Host with type D yoke probe 1 unit
• White lamp 1 pc
• UV lamp 1 pc
• AC power cable 1 pc
• Power adapter 1 pc
• Lead acid battery 1 pc
• DC power cable 1 pc
• Battery pack 1pc
• Instruction manual 1 pc
• Calibration certificate 1 pc
• Instrument case 1 pc

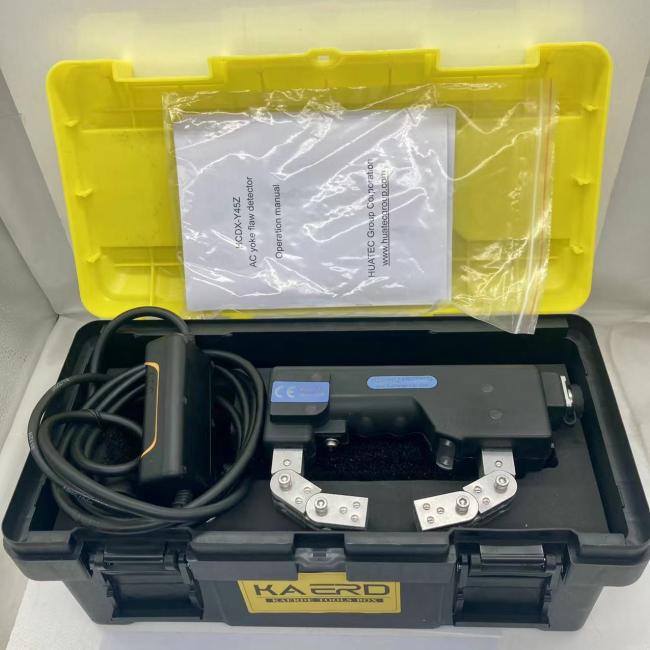

HCDX-Y45Z configuration
• Host with type D yoke probe 1 unit
• White lamp 1 pc
• UV lamp 1 pc
• AC power cable 1 pc
• Instruction manual 1 pc
• Calibration certificate 1 pc
• Instrument case 1 pc
