XXGH-3005 Panoramic Radiation NDT X-ray Flaw Detector with Ceramic Tube
Price:
Negotiable
MOQ:
1 SET
Delivery Time:
7-10 days after payment
Brand:
HUATEC
Product Description
Panoramic Radiation NDT X-ray Flaw Detector with Ceramic Tube
Product Overview
The XXGH-3005 features an advanced control system designed for industrial NDT applications. Its modular structure ensures high reliability and easy maintenance, while intelligent features protect equipment longevity and operator safety.
Key Specifications
| Attribute | Value |
|---|---|
| Max Penetration thickness Steel (A3) | 40mm |
| Focal Distance | 600mm |
| Exposure Time | 5min |
| Tube voltage (KVP) | 150-300 |
| Focus mm² | 1.0×2.5 |
| Radiation Angle | 360°×30° |
- Industry-leading expert intelligent X-ray control system with high anti-interference capability
- Modular main circuit structure with air duct heat dissipation design for reliable continuous operation
- Industrial stepless knobs for fast, convenient parameter adjustment
- Chopper control of start-up speed, adaptable to different X-ray generators
- Soft-start and slow turn-off voltage control for X-ray generator protection
- Automatic training mode with voltage reduction protection during generator discharging
- Working state indicators for convenient long-distance observation
- Safety door interlocking input terminal for personnel protection
- Settable exposure time delay function
- Easy-access cooling fan for regular maintenance
- Rubber shock-absorption guards for outdoor work suitability
- Accumulative exposure time recording for usage monitoring
Technical Parameters
| TYPE ITEM | XXGH-3005 |
|---|---|
| Max Penetration thickness Steel (A3) | 40mm |
| Focal Distance | 600mm |
| Exposure Time | 5min |
| Film Type | HUATEC T7 |
| Double lead foil Intensifying screen | 0.03 |
| Darkroom Disposal | 20±2℃ |
| Development | 5minutes |
| Blackness | 1.5 |
| Input Voltage (V) | 220V±10% 50―60Hz |
| Input Capacity (KVA) | 3.0 |
| Output Tube voltage (KVP) | 150-300 |
| Output Tube current (mA) | 5 |
| Stability | ±1% |
| X-RAY Tube Focus mm² | 1.0×2.5 |
| X-RAY Tube Radiation Angle | 360°×30° |
| Sensitivity | k≤1.8% |
| Operation Mode | Intermittent operation (1:1 radiating to cooling time ratio) |
| X-Ray Controller Dimension | 270×270×140 |
| X-Ray Controller Weight | 9kg |
| X-Ray Controller Circuit Structure | Micro-computer control, Modular structure, Voice prompt |
| X-RAY Generator Cooling | Force air cooling |
| X-RAY Generator Insulation | SF6 Gas Insulation |
| X-RAY Generator Working Pressure | 0.35Mpa-0.45Mpa |
| X-RAY Generator Dimension | 340×340×700 |
| X-RAY Generator Weight (kg) | 32kg |
| Working Temperature | -10℃―+40℃ |

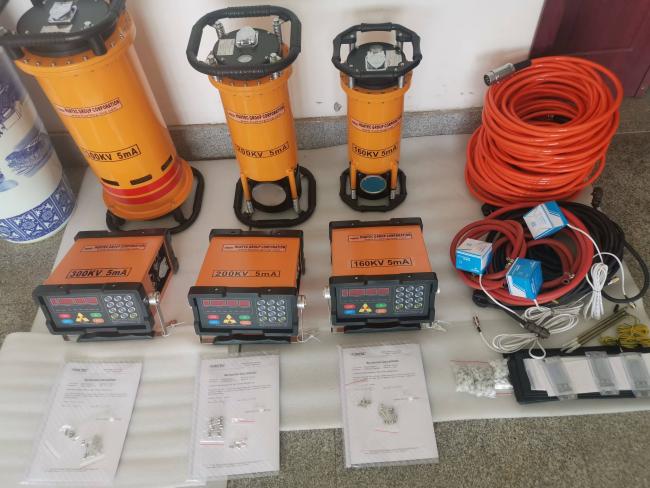

Standard Delivery
- Panoramic ceramic X-ray tube: 1 Pcs
- Generator: 1 Set
- High voltage joins cable: 1 Pcs (25 Meters)
- Controller: 1 Set
- Power cable: 1 Pcs (10 Meters)
- Grounding cable: 1 Pcs (5 Meters)
- Accessories: 1 Set (Including: alarm lamp, lead letter, film dark cassettes, intensifying screens, wire penetrameter, fuse)
