HXH20 High-Speed Rotating Anode Medical X-ray Tube 150kV for Diagnostic Imaging
Price:
Negotiable
MOQ:
1 pc
Delivery Time:
7-10 working days after receipt of your payment
Brand:
HUATEC
Product Description
HXH20 High-Speed Rotating Anode Medical X-ray Tube 150kV for Diagnostic Imaging
一.SCOPE:
It is used together with medical diagnostic X-ray generator for medical X-ray diagnosis.
|
nominal X-ray tube voltage(kV) |

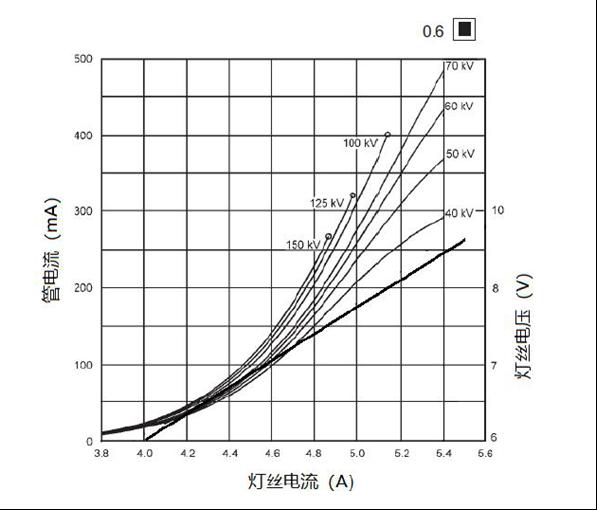

filament characteristics(V) |
target |
||
|
material |
angle |
diameter |
||
|
150 |
If max=5.5A ,Uf=9±2(small) |
Re-W |
12° |
100 |
|
If max=5.5A ,Uf=13.5±2(big) |
||||
|
anode speed (r/min) |
Inherent filtration(mmAl) (75kV) |
Weight (≤kg) |
nominal focal spot value |
|
2700(50Hz) 3200(60Hz) 9700(180Hz) |
≥1.5 |
2 |
0.6(small) |
|
1.2(big) |
|

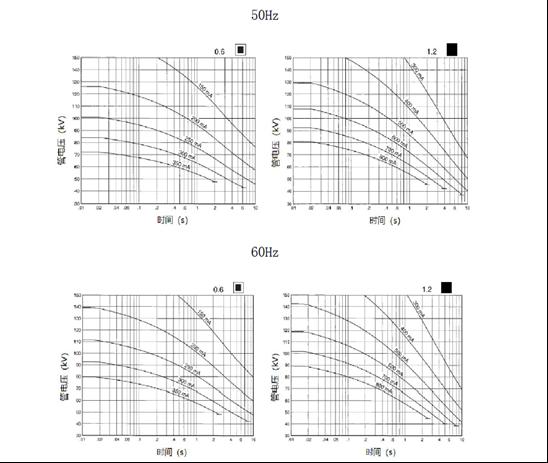

nominal anode input power(kW) (0.1s) |

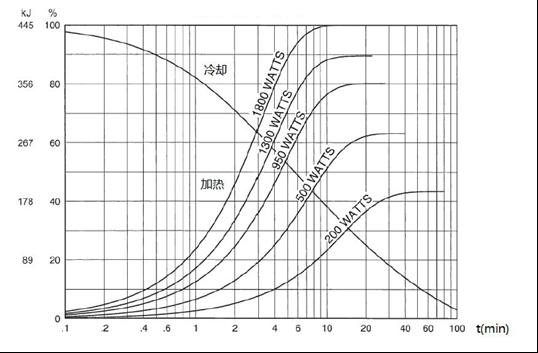

maximum anode heat content(kJ) |
maximum continuous heat dissipation(W) |
|
22/55(50Hz) 25/60(60Hz) 40/100(180Hz) |
445(600kHU) |
1800 |
