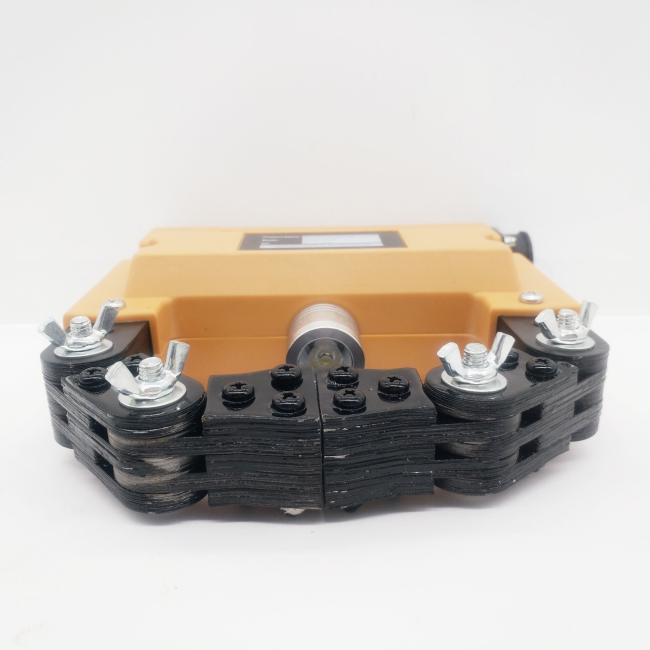

HCDX-220DC Portable DC Magnetic Yoke Flaw Detector for Welding Seam Inspection
HCDX-220DC Portable DC Magnetic Yoke Flaw Detector for Welding Seam Inspection
Product overview
Portable handheld equipment for magnetic particle inspection
Magnetic particle flaw detector has the characteristics of compact structure, reasonable layout, compact size, light weight, easy to carry and so on. It is suitable for magnetic particle inspection of surface and near surface defects of all kinds of iron and steel structural parts, boilers, pressure vessels, pressure pipelines and various types of welded ferromagnetic materials in electric power, metallurgy, petrochemical, machinery and other industries. The flaw detector can be directly connected to DC magnetized power supply, efficient and light. It is especially suitable for welding seam inspection of ship hull, welding seam inspection of steel structure in high altitude and internal operation of pressure vessel.
The instrument meets the requirements of JB/T7411-2012 "Technical Conditions of Electromagnetic Yoke Flaw Detector" standard.
Standard Practice for Magnetic Particle Testing——ASTM E1444-05
Technical Parameters
|
Item |
HCDX-220DC |
|
|
Rechargeable Battery |
MF12—7.2AH |
|
|
Working current |
DC1.7A |
|
|
Charging time |
8~15h |
|
|
Battery working time |
6hours up |
|
|
Testing time |
100sec on 100sec off |
|
|
Pole distance |
0~200mm |
|
|
Yoke weight |
||
|
Size(mm) |
||
Product features
1, Compact size, handy and light weight, robust construction is safe for operator
2. One-piece forming, comfortable hand feel.
3. DC magnetization power supply (DCbattery pack)
4. Strong and rugged construction for continuous inspection
Standard delivery
HCDX-220DC Electromagnet yoke
Power cord
Battery pack
Battery charger
Battery DC connection cable
Battery bag
Carrying case
Optional accessories
White light lamp and UV lamp
