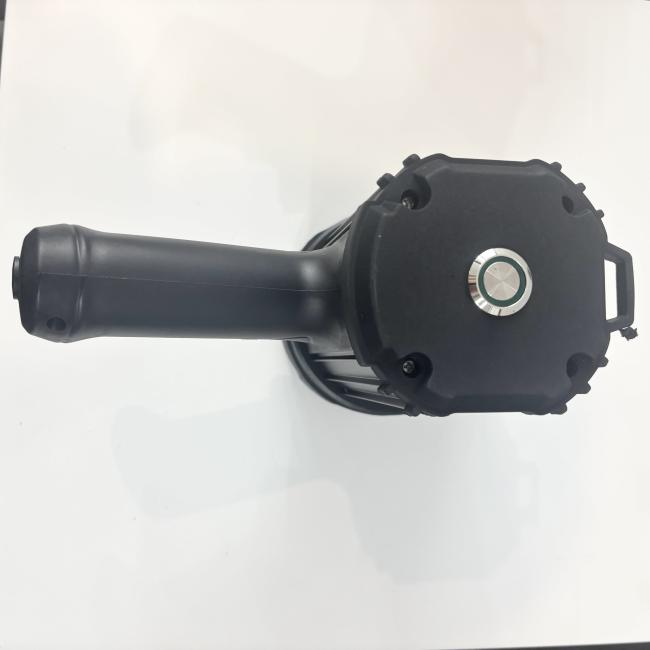

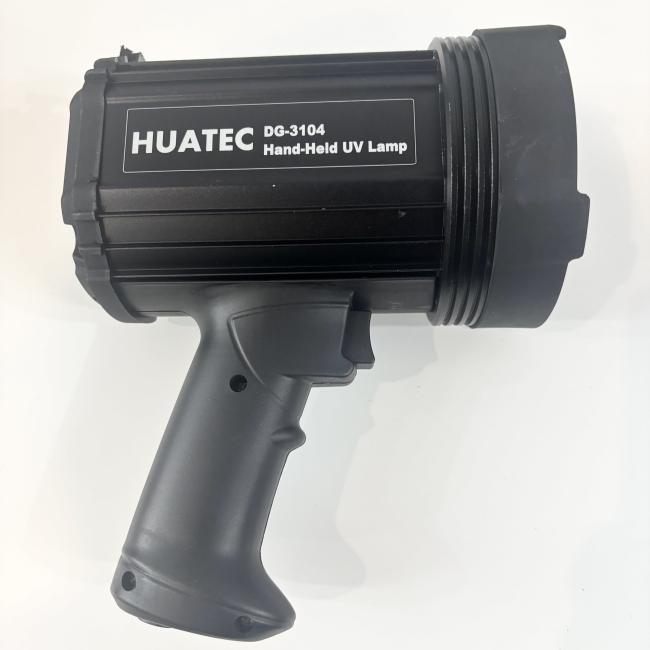

DG-3104 Handheld UV Blacklight with Filter for MPI/FPI Non-Destructive Testing
DG-3104 Handheld UV Blacklight with Filter for MPI/FPI Non-Destructive Testing
IMPORTANT SAFETY INSTRUCTIONS
• Read all instructions.
• Do not operate the lamp with a damaged cord or if the lamp has been damaged.
• Never use this equipment in any manner not specified in these instructions because the protection provided by the equipment may be impaired.
• The HUATEC DG-3104 is not approved for use in hazardous atmospheres. Do not attempt to use it in areas requiring explosion-proof lighting.
Technical data
| DG-3104 | 4 365nm UV LEDs and one white LED |
| Base |
15 x 14 cm (6 x 5.5 inches) |
| Length | 15 cm |
| Weight | 0.9 kg |
| Battery pack | 24V 3000mAHR rechargeable battery pack |
| Continuous running time | 5 hours |
| Charging time | about 2-5 hours |
| AC power | 100-260v AC power, 50/60 Hz |
INTRODUCTION

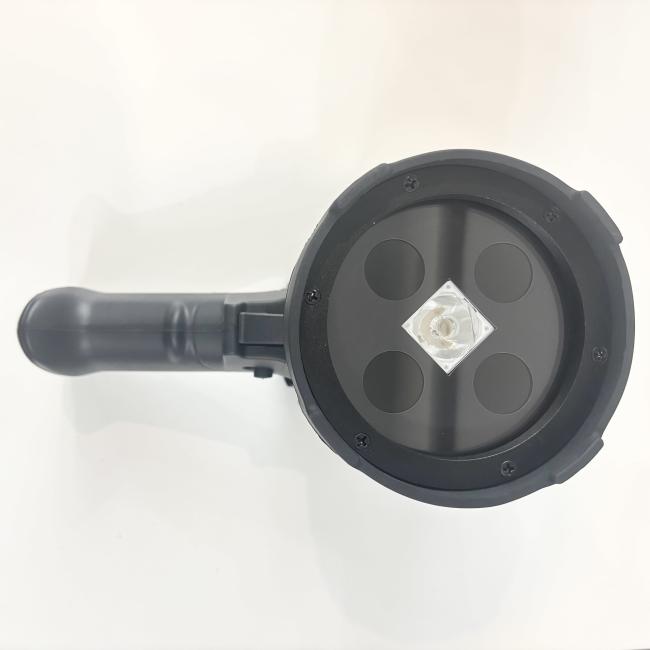

HUATEC DG-3104 non-destructive inspection UV lamps have multiple ultra-high-throughput UV-A LEDs for inspection, as well as a convenient white LED, which is used to illuminate dark work areas.
HUATEC DG-3104 has 4 UV-A led and one white light led,
The standard configuration includes an AC power cord kit,intelligent AC charger, UV protective glasses, and a soft suitcase.

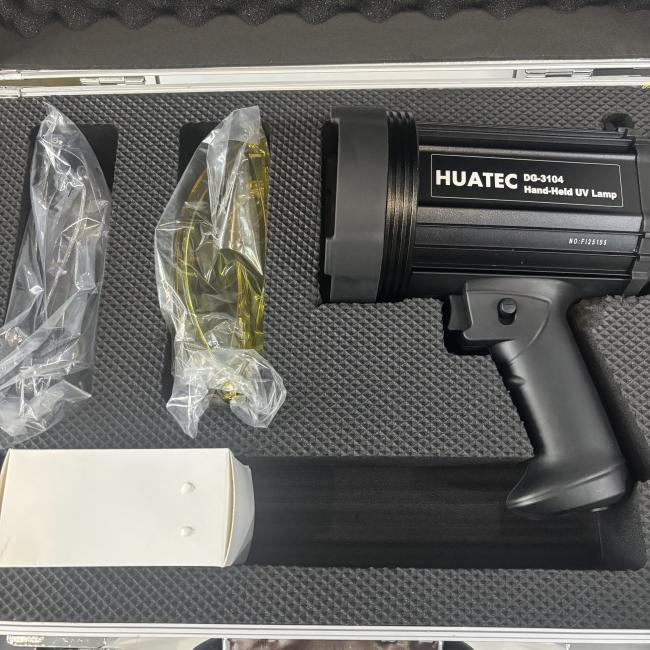

Standard configuration:
HUATEC DG-3104 host, UV-10 UV protective glasses, UV-30 UV protective glasses, manual,certificate, warranty card, handbag
Options:
ASTM Certificate
HUATEC DG-340 ultraviolet illuminance meter
