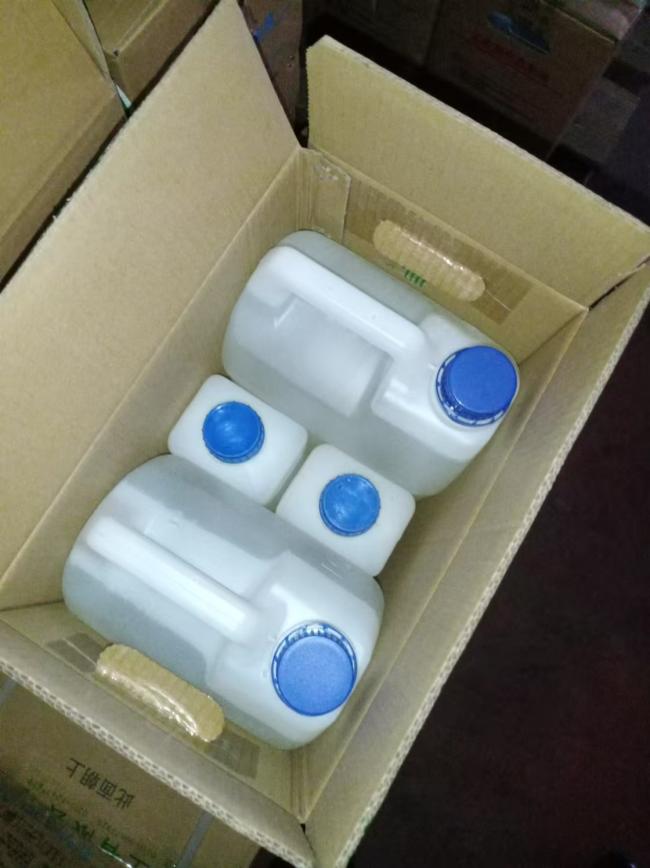

HUATEC Industrial X-ray Film D5 & D7 Developer and Fixer
HUATEC Industrial X-ray Film D5 & D7 Developer and Fixer
Product name and model specification
| Model | Specification |
|
D4,D4-D,H4,LA400,D5,D5-D, D7,D7-D,H7,H7-D |
356mm×432mm(14in.×17in.),305mm×381mm(12in.×15in.),260mm×360mm (10in. ×14in.),70mm×300mm,80mm×150mm,80mm×240mm,80mm×300mm,80mm×360mm, 100mm×356mm,195mm×275mm,70mm×200m,80mm×100m,80mm×200m |
Other specifications and packing capacity can also be provided according to customer requirements.
Features and uses
Industrial X-ray film is a kind of high resolution and high image resolution film which is widely used in nondestructive flaw detection. The film has high sensitivity, high contrast, high definition,
It can be directly or with lead sensitization screen for X or γ ray exposure. It is suitable for electronic components, synthetic materials, casting and casting, welding, etc.
NDT testing for shipbuilding, national defense and nuclear industry, aerospace and aviation industry, etc. Using blue polyester sheet base, two sides coated with emulsion layer, layer and
Protective layer. This film has rich layers, high image resolution and good definition. This film can be processed at room temperature, also can be processed by high temperature machine.
Features and uses
 |
GB/T19348.1 | EN 584.1 | ASTME 1815-08 | ISO 11699-1 |
| D4,D4-D,H4 | C3 | C3 | Ⅰ | C3 |
| D5,D5-D | C4 | C4 | Ⅰ | C4 |
| D7,LA400,D7-D,H7,H7-D | C5 | C5 | Ⅱ | C5 |
Product performance
| Name of index | unit | D4,D4-D | H4 | LA400 | D5,D5-D | D7,D7-D,H7,H7-D |
| Density of fog | -- | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.12 |
| Contrast factor “r” | -- | ≥4.0 | ≥3.0 | ≥3.2 | ≥4.0 | ≥3.5 |
| ISO “S” | -- | ≥1.5 | ≥1.0 | ≥0.6 | ≥1.5 | ≥2.0 |
| Alkali soluble time | Minutes | ≥10 | ||||
| Scratch resistance in processing | N | ≥0.8 | ||||
Safety lighting and washing processing
The safety operating light in the darkroom of this film is a crimson safety light with a 15W bulb. When the film is used for unsealing, the lamp distance is generally above 1.2 meters. Cumulative illumination time
No more than 40 minutes. The exposed sample should be flushed within 2h. The washing process is shown in the table below.
| Flush the way | Other countries | Temperature / ℃ | Development time /min | Fixed time /min | Dry / ℃ | transshipment ml/m2 |
| Manual | D-19b | 20±0.5 | 5±1 | 10 | Natural drying | 300 |
| Machine wash | G-30 | 29±1 | 1.5～2 | 2 | 45～55 |
Main film working curve
Product name and model specification
| Model | Specification |
|
D4,D4-D,H4,LA400,D5,D5-D, D7,D7-D,H7,H7-D |
356mm×432mm(14in.×17in.),305mm×381mm(12in.×15in.),260mm×360mm (10in. ×14in.),70mm×300mm,80mm×150mm,80mm×240mm,80mm×300mm,80mm×360mm, 100mm×356mm,195mm×275mm,70mm×200m,80mm×100m,80mm×200m |
Other specifications and packing capacity can also be provided according to customer requirements.
Features and uses
Industrial X-ray film is a kind of high resolution and high image resolution film which is widely used in nondestructive flaw detection. The film has high sensitivity, high contrast, high definition,
It can be directly or with lead sensitization screen for X or γ ray exposure. It is suitable for electronic components, synthetic materials, casting and casting, welding, etc.
NDT testing for shipbuilding, national defense and nuclear industry, aerospace and aviation industry, etc. Using blue polyester sheet base, two sides coated with emulsion layer, layer and
Protective layer. This film has rich layers, high image resolution and good definition. This film can be processed at room temperature, also can be processed by high temperature machine.
Features and uses
| |
GB/T19348.1 | EN 584.1 | ASTME 1815-08 | ISO 11699-1 |
| D4,D4-D,H4 | C3 | C3 | Ⅰ | C3 |
| D5,D5-D | C4 | C4 | Ⅰ | C4 |
| D7,LA400,D7-D,H7,H7-D | C5 | C5 | Ⅱ | C5 |
Product performance
| Name of index | unit | D4,D4-D | H4 | LA400 | D5,D5-D | D7,D7-D,H7,H7-D |
| Density of fog | -- | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.12 |
| Contrast factor “r” | -- | ≥4.0 | ≥3.0 | ≥3.2 | ≥4.0 | ≥3.5 |
| ISO “S” | -- | ≥1.5 | ≥1.0 | ≥0.6 | ≥1.5 | ≥2.0 |
| Alkali soluble time | Minutes | ≥10 | ||||
| Scratch resistance in processing | N | ≥0.8 | ||||
Safety lighting and washing processing
The safety operating light in the darkroom of this film is a crimson safety light with a 15W bulb. When the film is used for unsealing, the lamp distance is generally above 1.2 meters. Cumulative illumination time
No more than 40 minutes. The exposed sample should be flushed within 2h. The washing process is shown in the table below.
| Flush the way | Other countries | Temperature / ℃ | Development time /min | Fixed time /min | Dry / ℃ | transshipment ml/m2 |
| Manual | D-19b | 20±0.5 | 5±1 | 10 | Natural drying | 300 |
| Machine wash | G-30 | 29±1 | 1.5～2 | 2 | 45～55 |
Main film working curve
D7 film aluminum working curve D7 film steel working curve
