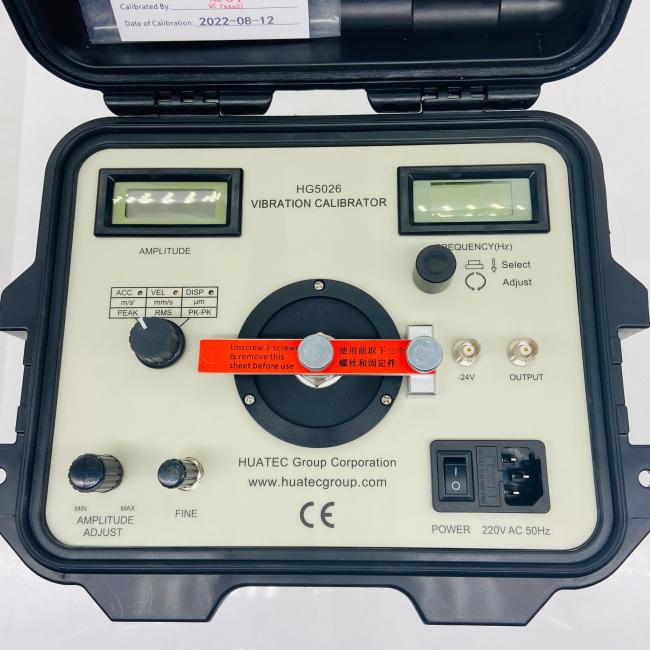

HG-5026 vibration calibrator can be used to calibrate vibration accelerometer, velocity and proximity transducer and also a vibration measuring instrument. Standard sine signal vibration at any frequency from 1 to 1280 Hz can be defined in the calibrator. The amplitude of the acceleration, velocity and displacement, can be defined through potentiometers and shown on digital displays. Either horizontal or vertical vibration can be generated. HG-5026 combines sine signal generator, power amplifier, standard transducer, vibration meter and a shaker in one and features a small volume, high accuracy and easy operation. It can be used either in laboratory or on site.

Specifications
Frequency: from 1 to 1280 Hz
Amplitude accuracy:
  Acceleration (@10m/s2 pk)     40Hz to 320Hz + 0.3dB + 1digit
                20Hz to 640Hz + 0.5dB +1digit
Velocity (@20mm/sec rms)       40Hz to 320Hz +0.5dB +1digit
Displacement (@50μm pk-pk)    40Hz to 320Hz + 0.5dB + 1digit

Proximity probe linearity calibration kits
  Probe:  5mm and 8mm probes      Range:  0~2.0mm

Display:  3 1/2 digit display for vibration and frequency

Maximum vibration amplitude & transducer weight
