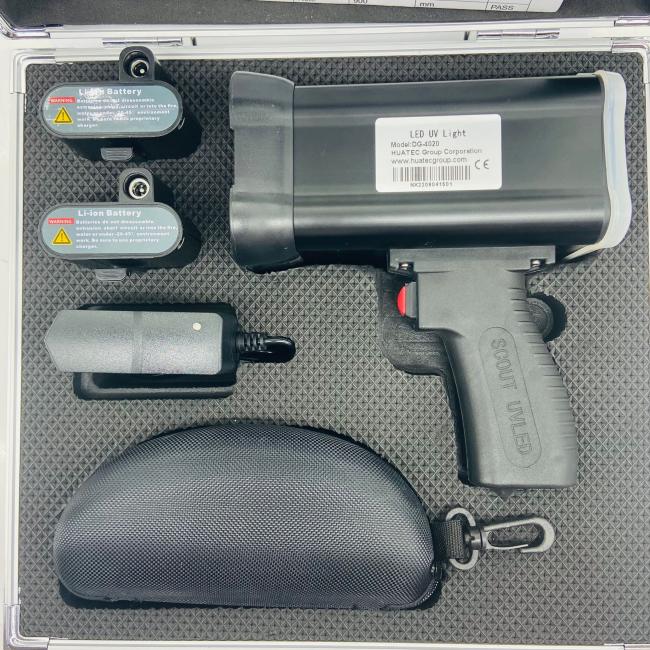

DG-4020 Fluorescent Penetrant UV Lamp
DG-4020 Fluorescent Penetrant UV Lamp
Dual AC&DC operation handheld LED-UV Lamp
Main purpose
Fluorescent Magnetic Particle Inspection (MPI)
Fluorescent Penetrating Inspection (FPI)
Oil contamination, leakage, and fluorescent labeling inspection
Feature
● Strictly comply with ASTM E3022
● UV-B content is 0
● Battery life of 2-3 hours
● Quick Battery Replacement
● Only 560g of battery is included
● Temperature rise of external surface under continuous operation < 8K (8℃)
● It has colour filter glass, and the white light content is less than 20LUX
● Can work with AC directly and also with DC battery
DG-4020 Dual AC DC Operation Handheld LED UV Lamp parameter
| Project | Parameter / mode |
| Style | Handheld |
|
UV(Light)-FLUX Indoor temperature 25℃ |
6000uW/cm2 |
| White light content | ≤3LUX |
|
Irradiation area at depth of 380mm: (≥1000uw/cm²) |
Φ300mm |
| Flux error | 0-40℃ ±10% |
| Light distribution characteristics | Central light distribution |
| Power Supply | AC100- 240V,50/60Hz |
| Power | UV LED-12VA |
| Wavelength | Room temperature 25℃, 365nm±3nm (UVA) |
| Overall dimension | 157. 5mm (W) *76mm (D) *177mm (H) |
| Weight | 560g including battery |
| Battery capacity | 2200mA/H 12.6V |
| Charging time | 2-3H |
| Battery life (cumulative time) | UV LED 2-3H |
Dimension: (mm)
