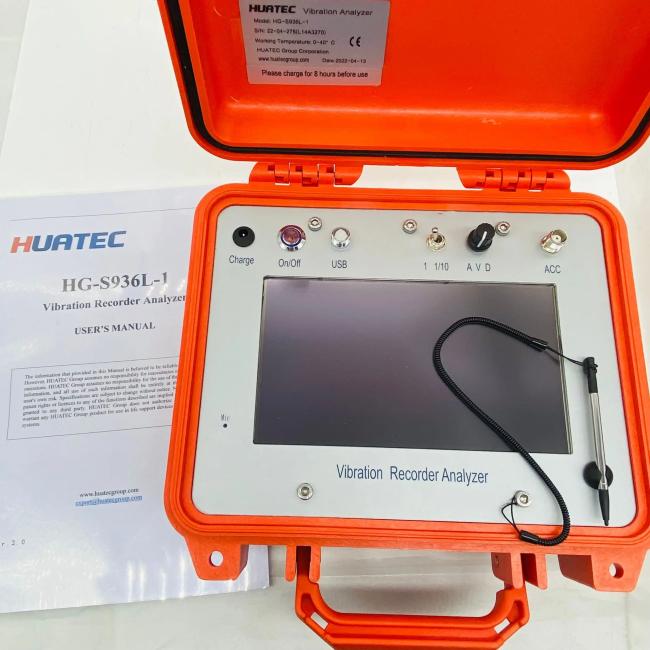

HG-S936L-1 Vibration Measurement Recorder Acceleration Velocity Displacement Vibration Analyzer
HG-S936L-1 Vibration Measurement Recorder Acceleration Velocity Displacement Vibration
Analyzer
Basic principle:
Through the piezoelectric acceleration sensor, the acceleration, velocity, displacement and other parameters of the recorded vibration can be measured seamlessly and continuously, and long waveform storage (>10 minutes) can be realized. Choose a segment of the recording for signal analysis: amplitude spectrum, power spectrum, Logarithmic spectrum, cepstrum, spectrum refinement, time domain diagnosis, statistical characteristic value analysis, etc., and can automatically generate WORD format test reports.
Technical index:
| Frequency range | 1Hz-200Hz |
| Minimum measurable vibration value | 0.1mm/s2; 0. 1µm/s |
| Range/resolution (range can be customized) | Acceleration: 10m/s2 / 0.001 m/s2 Speed: 10mm/s / 0.001 mm/s Displacement: 100 µm / 0.01 µm |
| Measurement parameters (single parameter) | acceleration, velocity, displacement |
| Vibration measurement accuracy (acceleration, speed) | +5% FS |
| Two ranges for selection | (full range, 1/10 range) |
| Windows software environment | XP/7/8/10 |
| Spectrum analysis resolution | 400 lines, 3200 lines after 8 times of refinement |
| Working temperature range | -20-70℃ |
Features:
*Long-time seamless recording
*Sensor: Very High sensitivity Accelerometer

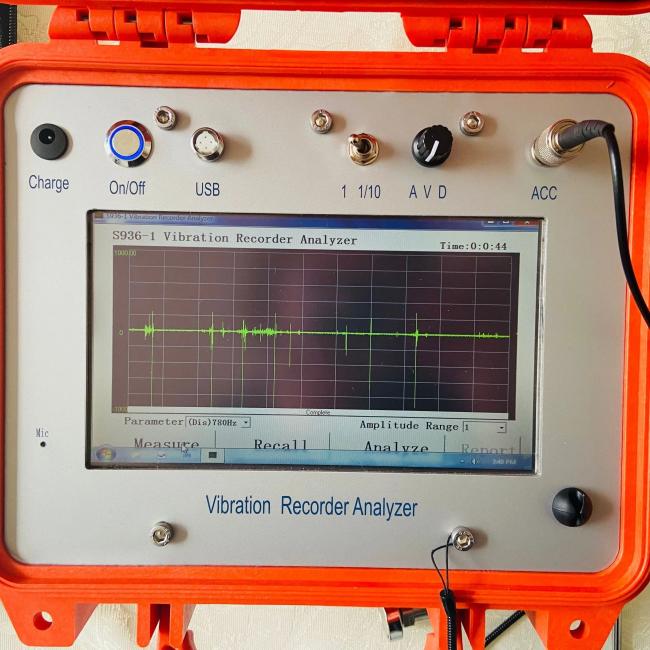

*Raw Waveform Recording
*Non-Stable Vibration Analysis
*Natural Frequency Analysis
*Startup-Shutdown Recording & Analysis
*Spectrum Analysis Tools: Amplitude-Spectrum, Power-Spectrum, Logarithm-spectrum, Cepstrum

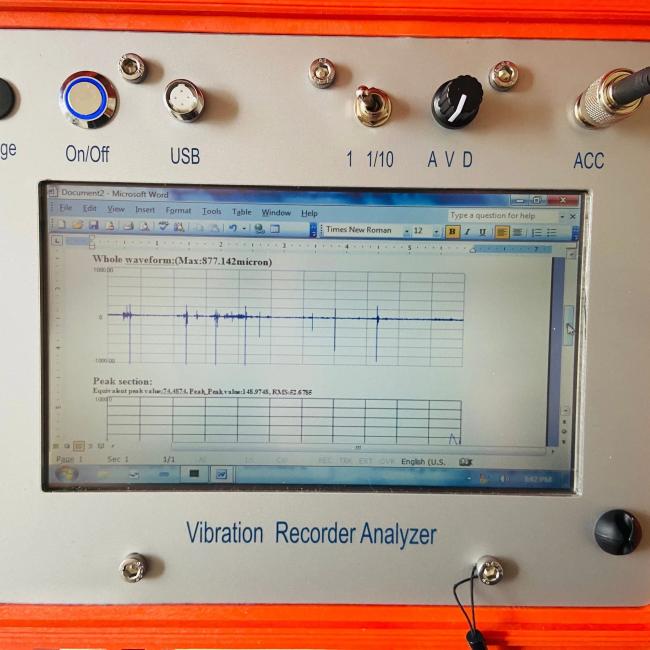

*Automatic Report Generation: WORD Format
• Long waveform storage (>10 minutes), select a segment in the record for signal analysis
• USB2.0 full-speed bus transmission
• Spectrum analysis resolution: 400 lines, 3200 lines after 8 times of refinement
• 8th order elliptic anti-aliasing filter
• Powered by the host USB, no additional power supply required
• Single channel
Standard accessories:
1 laptop,
1 collection box
1 cable
1 low-frequency sensor
1 magnetic base
1 charger
1 instrument box
1 calibration certificate
