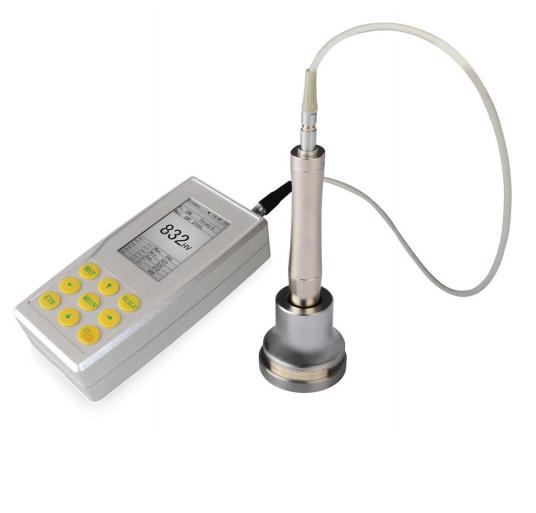

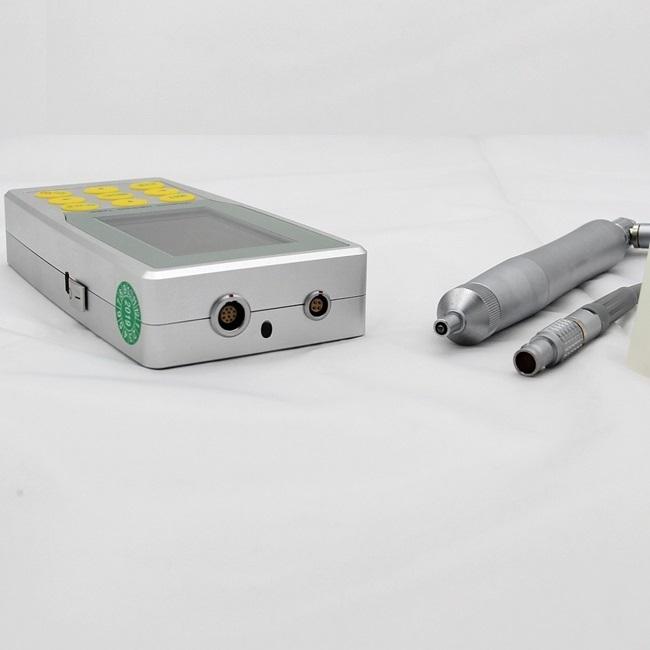

HUH-5E Motorized Probe Ultrasonic Hardness Tester Portable Hardness Testing Machine
HUH-5E Motorized Probe Ultrasonic Hardness Tester Portable Hardness Testing Machine
Features:
●Disadvantages are obvious for the hardness measurement commonly used like Brinell, Rockwell, Vickers, Leeb, etc.
● Rockwell and Brinell with heavy loading force and big indentation, lead to serious destruction on sample surface.
● Vickers apply optical measurement, but only professional technicians can operate smoothly, impossible to measure hardness of heavy work piece, installed machinery and permanently assembled parts.
● Leeb hardness tester apply rebound and indirect method to measure hardness, easily lead to big deviation when convert to Brinell, Rockwell and Vickers scales.
● Ultrasonic hardness tester HUH-5E applies ultrasonic contact impedance method to do comparative hardness measurement for testing pieces, with advantages of high accuracy, efficiency, portable and easy operation.
● Ultrasonic hardness tester HUH-5E is widely used to measure hardness of small forgings, cast material, weld inspection, heat affected zone, Ion-nitride stamping dies and molds, forms, presses, thin walled parts, bearings, tooth flanks, etc.
Specifications:
| Loading Force | 10N Motorized Probe |
| Indenter | 136°Vickers Diamond Indenter |
| Measuring Range | HB: 85-650;HV 80-1599; HRC 20-70;HRB: 41-100; HRA: 61-85.6 HS: 34.2-97.3;Mpa: 255-2180N/mm |
| Measuring Accuracy | HV:±3%HV; HRC:±1.5HRC; HB:±3%HB; HLD:±5HLD |
| Measuring Direction | Support 360° |
| Data Storage | To save 1000-groups of measuring data and 20-groups of calibration data |
| Hardness Scale | HV,HB,HRC, HLD |
| Data Display | Loading force, Testing-times, Testing result, Average, Maximum,Minimum,Deviation and Conversion scale |
| Hardness Indication | LCD display |
| Operating Environment | Temperature:-10℃~50℃; Humidity: 30%~80%R.H |
Features:
● Introduced latest ultrasonic sensor technology
● Obtain accurate hardness value without auxiliary devices
● Support 360° quick measuring
● Excellent human engineering design easy to hold
● Suitable dimension and weight of probe is convenient to control
● Quick and accurate measuring for edge and fixed position of specimen
● Micro indentation, Non- Destructive for specimen

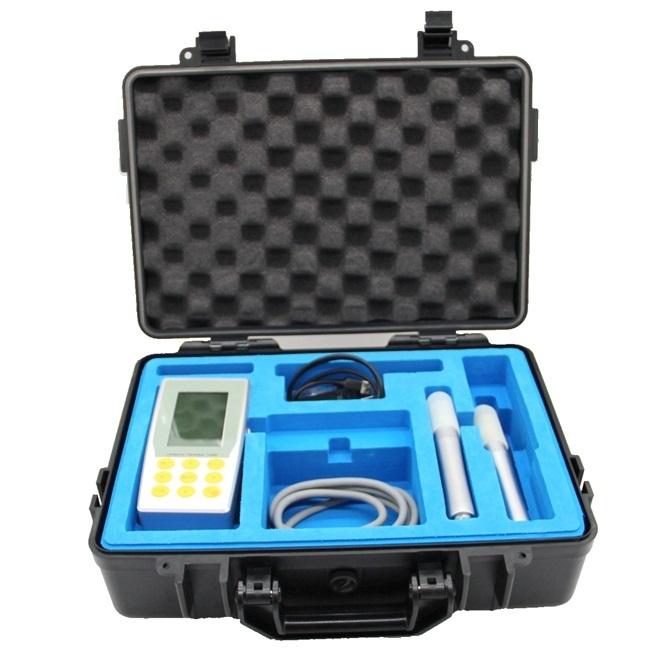

Standard Delivery:
| Standard Delivery | quantity | quantity | |
| HUH-5E main unit | 1 | Probe Cable | 1 |
| UCI-1000 Motorized Probe | 1 | Com Cable | 1 |
| Standard Rockwell Block | 1 | USB Cable | 1 |
| Anti Vibration Case | 1 | English Operation Manual | 1 |
| Screw | 1 | Warranty Card | 1 |
| Qualification Certificate | 1 | Packing List | 1 |
Motorized Probe Specifications:
| Probe Type | UCI-300 | UCI-500 | UCI-800 | UCI-1000 |
| Testing force | 3N | 5N | 8N | 10N |
| Diamter | 46mm | 46mm | 46mm | 46mm |
| Length | 197.5mm | 197.5mm | 197.5mm | 197.5mm |
| Oscillating Rod Diameter | 3.7mm | 3.7mm | 3.7mm | 3.7mm |
| Min weight of test material | 0.3kg | 0.3kg | 0.3kg | 0.3kg |
| Minimum thickness | 2mm | 2mm | 2mm | 2mm |
