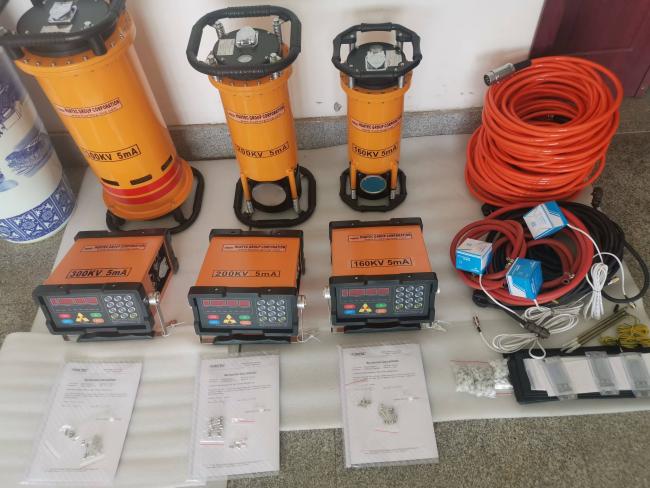

X-ray inspection equipment for welds/castings
X-ray inspection equipment for welds/castings
- Detect internal flaws: cracks, porosity, slag inclusions, voids, incomplete penetration
- Verify integrity of welds, castings, forgings, and critical components
- Ensure safety and compliance in quality control (ISO, ASME, Nadcap)
- Support real-time imaging, defect analysis, and reporting
|
TYPE ITEM |

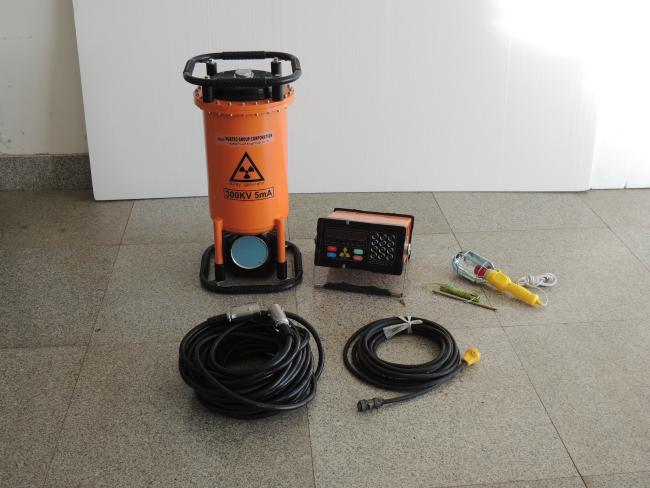

XXG3005 |
||
|
Max Penetration thickness Steel (A3) |
50mm |
||
|
Focal Distance |
600mm |
||
|
Exposure Time |
5min |
||
|
Film Type |
TianJin Ⅲ |
||
|
Double lead foil Intensifying screen |
0.03 |
||
|
Darkroom Disposal |
20±2℃ |
||
|
Development |
5minutes |
||
|
Blackness |
1.5 |
||
|
Input |
Voltage (V) |
220V±10% 50―60Hz |
|
|
Capacity (KVA) |
2.0 |
||
|
Output |
Tube voltage (KVP) |
150-300 |
|
|
Tube current (mA) |
5 |
||
|
Stability |
±1% |
||
|
X-RAY Tube |
Focus mm2 |
1.5×1.5 |
|
|
Radiation Angle |
40±5° |
||
|
Sensitivity |
k≤1.8% |
||
|
Operation Mode |
Intermittent operation, Radiating time to cooling time is 1:1 |
||
|
X-Ray Controller |
Dimension |
270×270×140 |
|
|
Weight |
9kg |
||
|
Circuit Structure |
Micro-computer control ,Modular structure,Voice prompt |
||
|
X-RAY Generator |
Cooling |
Force air cooling |
|
|
Insulation |
SF6 Gas Insulation |
||
|
Working Pressure |
0.35Mpa-0.45Mpa |
||
|
Dimension |
340×340×670 |
||
|
Weight (kg) |
32kg |
||
|
Working Temperature |
-10℃―+40℃ |
||
X-ray flaw detectors can test Pipelines internal defects it include volumetric defects such as pores, shrinkage cavities,
and slag inclusions. ·Area type defects: cracks, lack of fusion, lack of penetration. ·Abnormal shape and size: internal
structural deformation, thickness changes, assembly errors (such as missing or misplaced parts). ·Density difference:
Identify foreign objects of different materials or densities.
