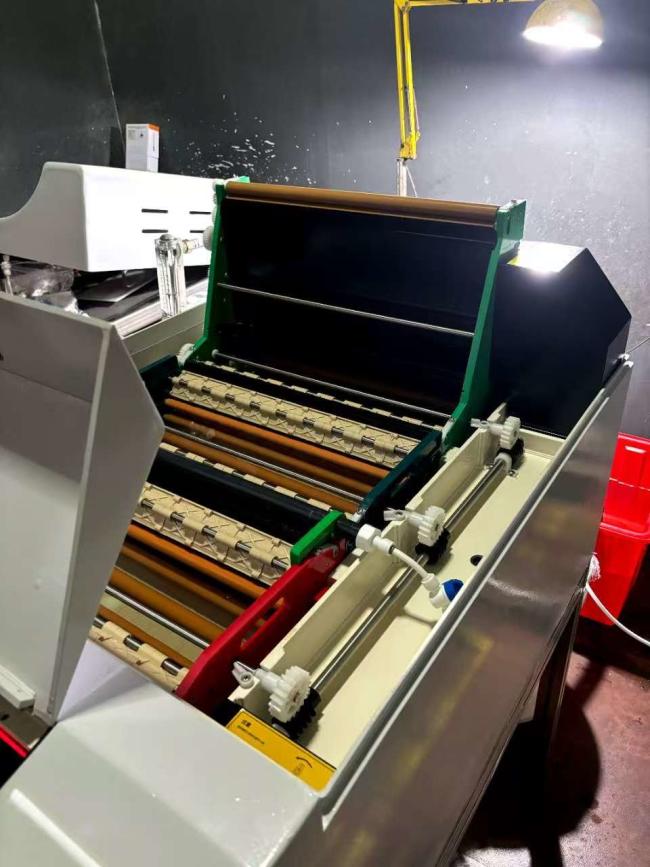

HDL-430D Tabletop Automatic Film Processor Adjustable Speed Temperature NDT X-ray Film Processing Machine
HDL-430D Tabletop Automatic Film Processor Adjustable Speed Temperature NDT X-ray Film Processing Machine
The machine is widely used in the quality inspection of boilers, shipbuilding, pressure vessels, oil and gas pipeline construction, aerospace and other equipment, and is widely praised by customers in the testing industry!
|
Specification |
Model: HDL-430D |
|
Film Size: Minimum: 50×100mm, Max. Width: 450mm Film Type: roll orflat film Film probes: 4 sets of micro inductive probes Processing Time: 3.2～16min. (0.1min. adjustable) Feed-in Speed:155～765 mm/min. Processing Capacity: 350×430mm 22-109 sheets/hr,80×300mm 110-545 sheets/hr (when 5.4 min processing time) Tank Volume: Dev. Fix. Wash.13L for each Supplementary: automatically replenish water according to film size,waterreplenishment 50～700ml/㎡ Dev. Temp.: 20～40℃ (0.1℃ adjustable) Fix. Temp.:automatically adjustable Dry Temp.: 20～70℃ (5℃ adjustable) Water Temp.: 5～30℃ Washing Controlling: when working: automatic water intake less than2L/min, standby: automatic shutdown Power Consumption:110～240V 10A, 50 or 60Hz Weight: G.W: 128kg, N.W: 88kg Dimension: appr.: 108×71.5×113cm3 |
