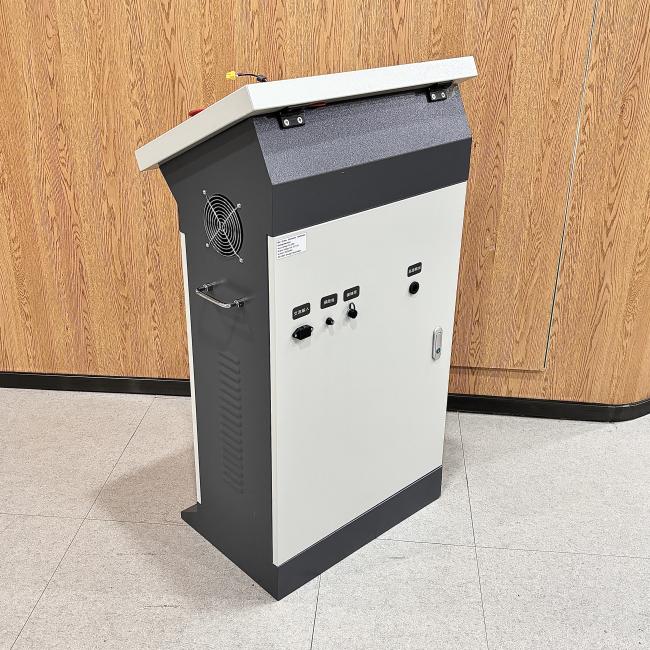

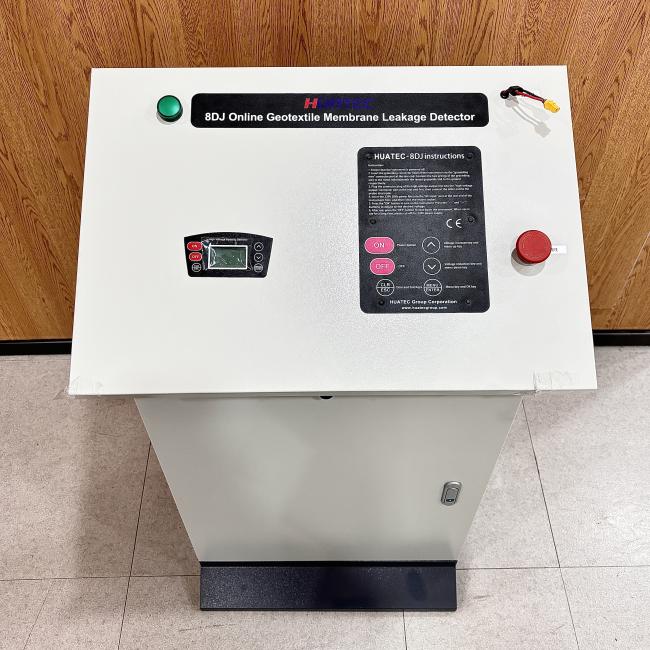

HUATEC-8DJ 0.05-10mm Thickness Geotextile Leak Detector LCD Display High Precision HDPE Membrane Pinhole Testing Equipment
HUATEC-8DJ 0.05-10mm Thickness Geotextile Leak Detector LCD Display High Precision HDPE Membrane Pinhole Testing Equipment
Instrument Features
The HUATEC-8DJ Online Geotextile/Fill Barrier Leakage Detector is an intelligent pulse high-pressure type anti-corrosion layer quality detection instrument. It adopts anti-interference intelligent chips, anti-interference LCD screens and digital control circuits, making the instrument's high-pressure output more accurate, capable of being controlled within the range of ±(0.1KV + 3% reading), and can automatically output an appropriate measurement voltage according to the thickness of the geotextile/fill barrier.
Instrument Performance Specifications
|
Instrument performance indicators |
|
|
Test voltage range |
0.6KV～31.5KV |
|
Applicable for thickness measurement |
0.05～10mm |
|
High-voltage output method |
pulse |
|
Measurement of voltage display |
3-digit display |
|
Display accuracy |
0.1KV |
|
voltage accuracy |
±(0.1kv+3%) |
|
Leakage point count |
Maximum 999 |
|
type of alarm |
Peak buzzer alarm, sound, light and light alarm |
|
Power-off mode |
Manual shutdown |
|
display screen |
128 * 64 dot matrix LCD display with backlight |
|
dissipated power |
≤6W |
|
input power |
Input AC 220V |
|
High-voltage connection cable |
The standard length is close to 5m |
|
ground lead |
1 set of black/black |
|
fuse |
1A |
Testing Principle
When the high-pressure probe sweeps over the non-conductive geotextile/fill barrier, if there is a quality problem with the geotextile/fill barrier, such as pinholes, bubbles, cracks and fissures, the instrument will emit a bright electric spark and record the leakage point, while giving an audible and visual alarm.
The HUATEC-8DJ Online Geotextile/Fill Barrier Leakage Detector is a dedicated instrument for detecting the quality of geotextiles/fill barriers. Using this instrument, quality inspections can be conducted on geotextiles/fill barriers of different thicknesses.
Precautions
When using the HUATEC 8DJ online geomembrane/anti-seepage membrane leak detector, please strictly follow the instructions in the operating terms to ensure the safety of the user.
Special note: For special populations with pacemakers, doctors need to diagnose whether this device has any impact on them.
Attention: Before using the instrument, make sure it is grounded and do not discharge the instrument and its connecting wires to avoid damaging the instrument.

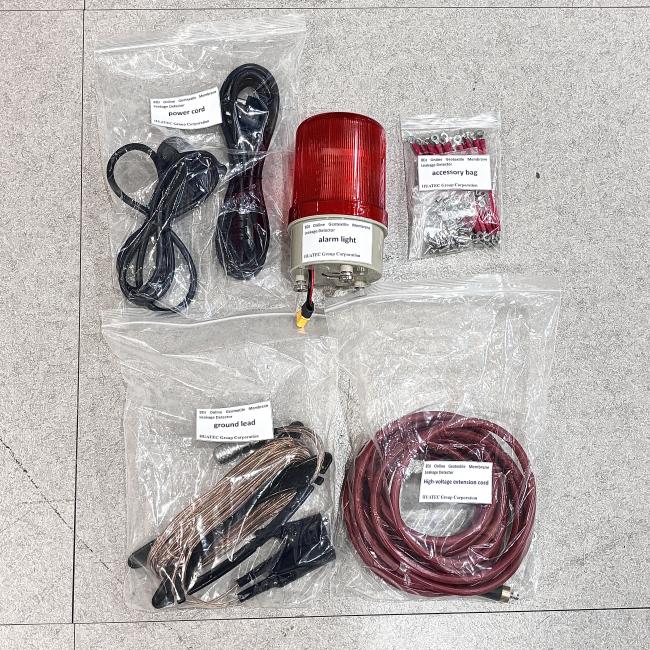

Packing List
1. HUATEC-8DJ Host 1
2. High voltage extension cable 1
3. Grounding wire 1
4. AC power cord 1
5. Grounding wire 1
6. Magnetic grounding pillar 1
7. Backup fuse 2
8. Instruction manual, certificate of conformity, warranty card
Optional accessories:
1. 1-meter probe brush 6
2. 0.5m probe brush 2
3. 0.9-meter probe brush 1
