H4343HWA-EG Wireless a-Si X-ray Flat Panel Detector Gigabit Ethernet 802.11ac 430×430mm Industrial NDT DR Detector

Name: H4343HWA-EG Wireless a-Si X-ray Flat Panel Detector Gigabit Ethernet 802.11ac 430u00d7430mm Industrial NDT DR Detector
Brand: HUATEC GROUP CORPORATION

Price Negotiable

Price: Negotiable

MOQ: 1 SET

Delivery Time: 7-10 working days after receipt of your payment

Brand: HUATEC

Product Description

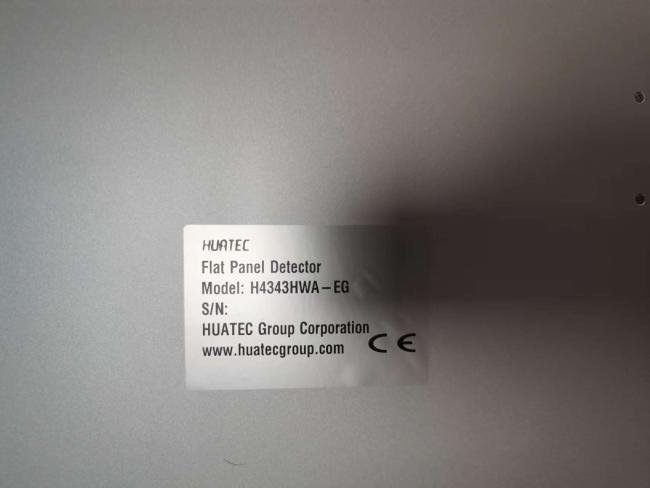

H4343HWA-EG Wireless a-Si X-ray Flat Panel Detector Gigabit Ethernet 802.11ac 430×430mm Industrial NDT DR Detector

H4343HWA-EG is a lightweight wireless detector based on amorphous silicon(a-Si), which is suitable for various fields such as DR and Non-destructive testing.

Electricals and interface
A/D Conversion 16 bits

Data Interface Gigabit Ethernet/802.11ac (only 5G)

Acquire Time wired: 1.5s; wireless: 3-5s

Exposure Control Software/Sync/AED
Memory 4 GB DDR4, 8 GB SD card

Mechanical
Dimension 460 × 460 × 15 mm
Weight 3.8kg (without battery)

Material Aluminum and magnesium alloys

Front Panel Carbon fiber

Enviromental

Temperature 10-35°C (operating)；-10~50°C (storage)

Humidity 30-70% RH (non-condensing)

Ingress Protection IP51 (Customized to IP67)

Sensor

Receptor Type a-Si

Scintillator Gos / CsI:TI

Active Area 430 x 430 mm

Resolution 4304 x 4304

Pixel Pitch 100 μm

Power Supply & Battery

Adapter In AC 100-240V,50-60Hz

Adapter Out DC 24V,2.7A

Power Dissipation <20 W

Standby Time 4.5 h

Recharge Time 4.5 h

Image Quality

Limiting Resolution 5 LP/mm

Energy Range 40-160 KV

Dynamic Range ≥76 dB

Sensitivity ≥0.36 LSB/nGy

Ghos <1% 1st frame

DQE 65% @(1 LP/mm)

40% @(2 LP/mm)

25% @(3 LP/mm)

MTF 60% @(1 LP/mm)

35% @(2 LP/mm)

20% @(3 LP/mm)
