Stepwedge Hole Image Quality Indicator H5/H9/H13 Steel Radiographic Testing Image Quality Penetrameter For X Ray Flaw Inspection
Price:
Negotiable
MOQ:
1 SET
Delivery Time:
5-7 working days after receipt of your payment
Brand:
HUATEC
Product Description
Stepwedge Hole Image Quality Indicator H5/H9/H13 Steel Radiographic Testing Image Quality Penetrameter For X Ray Flaw Inspection
Radiography: Accessories
Image Quality Indicators (I.Q.l's) - Penetrameters
EN 462-2 stepwedae/hole type penetrameters

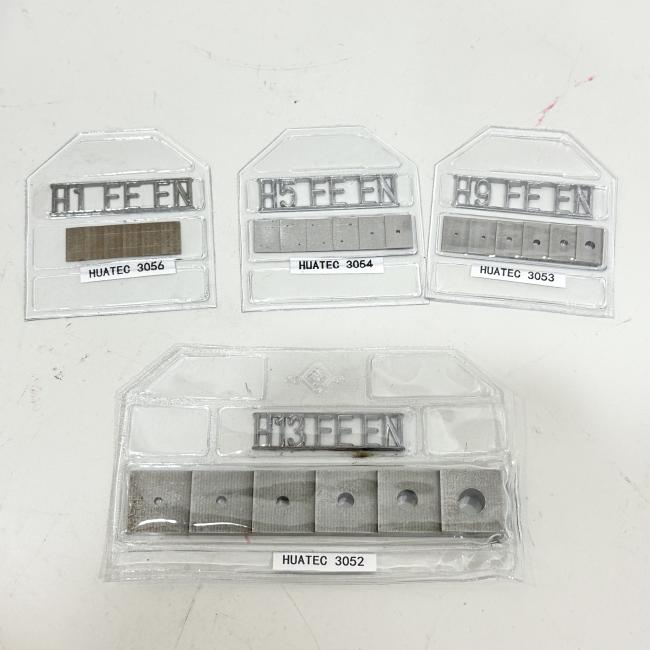

Stepwedge in shape and available in four Model Numbers H1 H5, H9 and H 13 in Steel.
| Model | Stepwedge Range | Steel Workpiece Thickness |
|---|---|---|
| H1 | 0.125 ~ 0.50 mm | <2.5 mm |

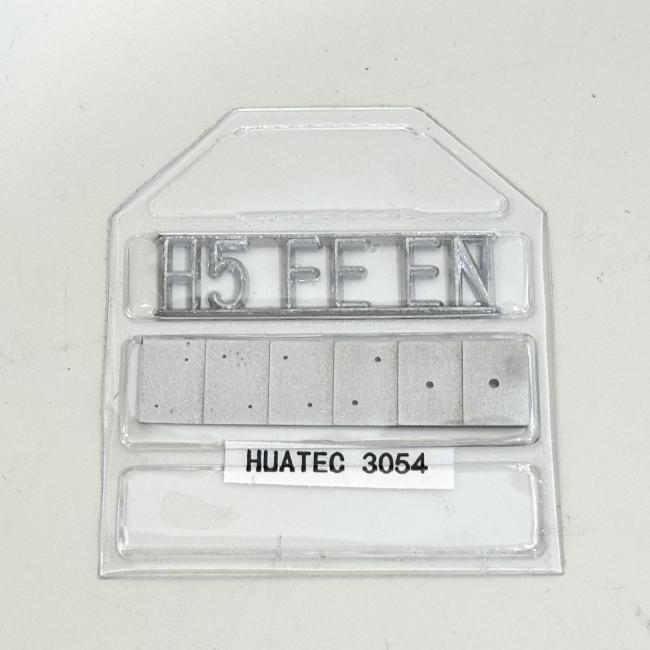

| H5 | 0.32 ~ 1.0 mm | 16 ~ 50 mm |

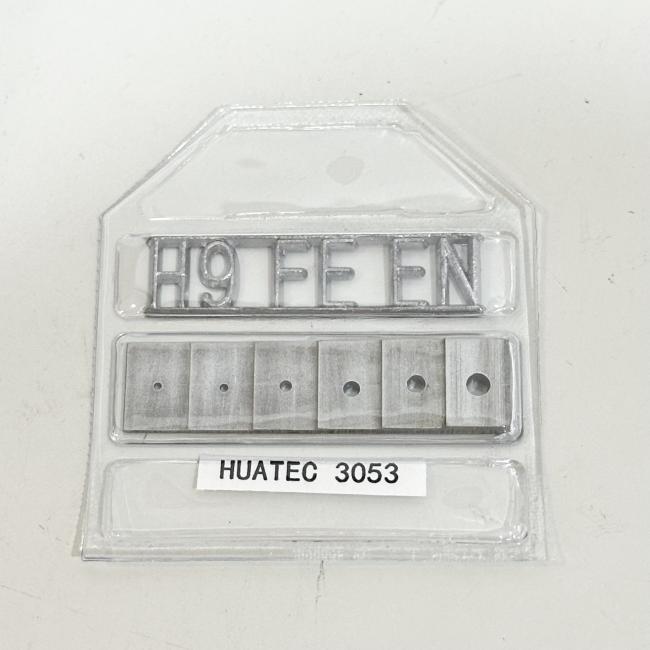

| H9 | 0.80 ~ 2.5 mm | 40 ~ 125 mm |
| H13 | 2.0 ~ 6.3 mm | 100 ~ 315 mm |
