SC ASTM E164 Sensitivity Calibration Block Shear Wave Ultrasonic Probe Calibration Test Block With Two 0.062" Side Drilled Holes
Price:
Negotiable
MOQ:
1pc
Delivery Time:
3-5 working days
Brand:
HUATEC
Product Description
SC ASTM E164 Sensitivity Calibration Block Shear Wave Ultrasonic Probe Calibration Test Block With Two 0.062" Side Drilled Holes
1. Executive Standard
Comply with ASTM E 164-2013 Standard Practice for Ultrasonic Testing of Metals, fully meet the shear wave sensitivity calibration requirements for industrial ultrasonic flaw detection.

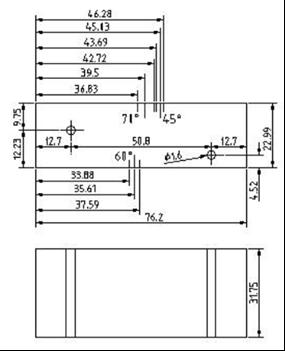

2.Physical Geometry Parameters
| Overall dimension | 0.905 inch × 1.25 inch × 3 inch |
| Built-in calibration feature | 2 pieces side drilled holes |
| Hole diameter | 0.062 inch |
| Hole depth | Through the block for stable echo signal output |
| Surface finish | Precision grinding, flatness tolerance ≤0.0005 inch, no burr or scratch to avoid signal interference |
| Optional versions | Imperial inch standard block; Metric millimeter customized block available on request |
3. Core Function & Application
*Mainly used for shear wave (transverse wave) sensitivity calibration of angle beam ultrasonic transducers.
*Calibrate detection sensitivity, verify system signal amplitude, check gain linearity of ultrasonic flaw detector.
*Applicable for pipeline weld inspection, pressure vessel NDT, structural steel ultrasonic testing, machinery component flaw detection.
*Suitable for daily instrument performance verification before shift, periodic equipment calibration, and laboratory performance testing.
