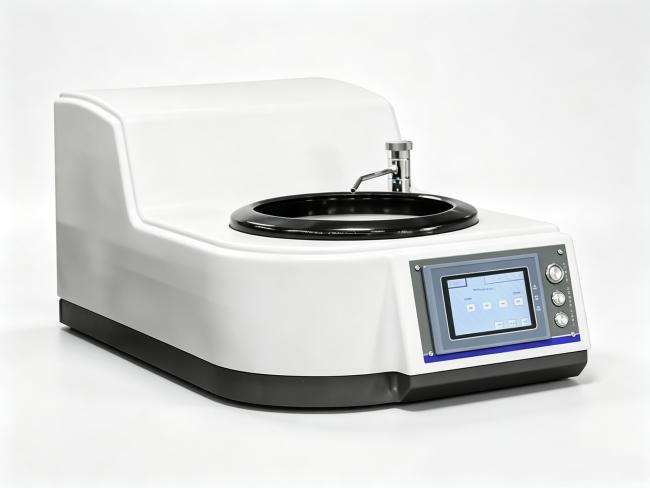

HPA-1SE Single Disc Metallographic Grinding Polishing Machine 1KW Motor 5-1500RPM Touch Screen Metal Sample Polisher
HPA-1SE Single Disc Metallographic Grinding Polishing Machine 1KW Motor 5-1500RPM Touch Screen Metal Sample Polisher
I, Product Features
1.The independent 1KW high power motor torque, no matter the speed is fast or slow, the torque is large and constant;
2.Touch screen interface, easy to set grinding and polishing parameters;
3.Wide speed range, from 5 RPM to 1000 RPM (maximum 1500 RPM);
4.The turntable quickly starts and stops, and the turntable can stop rotating in 2 seconds;
5.Speed, grinding time, rotation direction and other grinding parameters, and automatically save, easy to call;
6.Manual mode, four gears;
7.Water valve opens automatically (exclusive to LAP-1S)
8.64 automatic operations (LAP-1SE 9);
9.12 kinds of commonly used materials polishing process (LAP-1S unique);
10.Connect and control the polishing droplet (optional).
II, Technical parameters
|
Name |
Gauge lattice |
||||
|
Model number |
HPA-1SE |
|
|||
|
Features |
Good value for money |
|
|||
|
Motor power |
1Kw |
||||
|
Water valve opens automatically |
NO |
|
|||
|

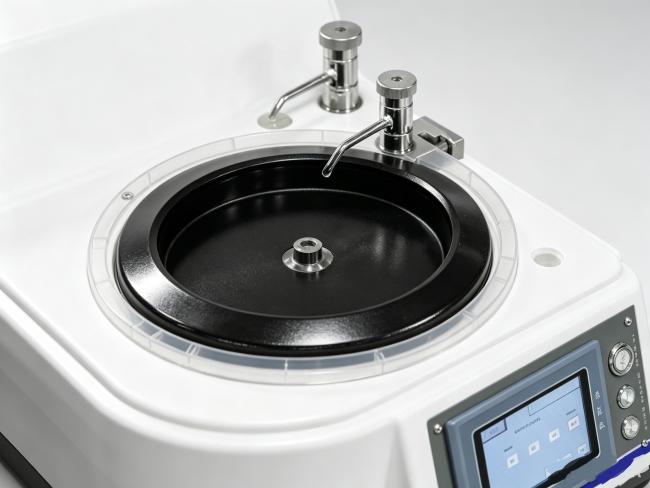

Working disc diameter (mm) |
φ254 (optional φ200, φ230, φ300) |
||||
|
RPM (r/min) |
5-1500 |
||||
|
Direction of rotation |
Counterclockwise/clockwise optional, forward, reverse automatic switch |
||||
|
Four-speed manual (r/min) |
V1=200, V2=400, V3=600, V4=800 (user can customize the speed) |
||||
|
Automatic grinding and polishing parameters Parameters include: speed, time and grinding disk rotation direction |
9 kinds |
|
|||
|
Grinding and polishing parameters |
User can set and call |
||||
|
Commonly used material sample preparation process |
No |
|
|||
|
Power Supply |
Voltage: AC220V, frequency: 50HZ |
||||
|
Overall dimension (mm) |
760 x 430 x 360 (L * W * H) |
||||
|
Weight |
28kg |
||||
3. Standard attachments
|
Quantity |
Name |
Quantity |
|
|
Anti-stick tray (254mm) |
2 |
With magnetic work plate (254mm) |
1 |
|
Sandpaper (with back glue, 250 diameter) 180#, 800#, 1500# |
2 each |
Diamond suspension grinding polish 6 microns 200 ml |
1 bottle |
|
Flocking polishing cloth (with back glue, 250mm) |
1 piece |
Canvas polishing cloth (with back glue, 250mm) |
1 sheet |
|
Anti-stick disc pry bar (used for placing and prying the anti-stick disc) |
1 piece |
|
|
