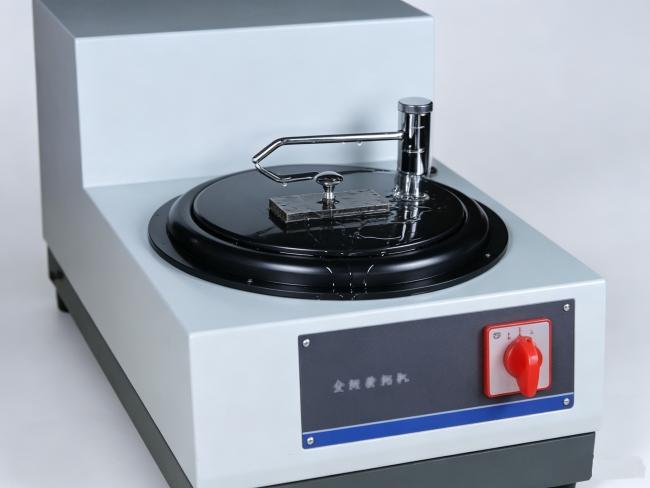

HPA-1E Two Gear Metallurgical Grinding Polisher AC220V/380V Optional Laboratory Sample Grinding Equipment
HPA-1E Two Gear Metallurgical Grinding Polisher AC220V/380V Optional Laboratory Sample Grinding Equipment
Product features
l One machine used to complete the grinding and polishing process of metallographic samples.

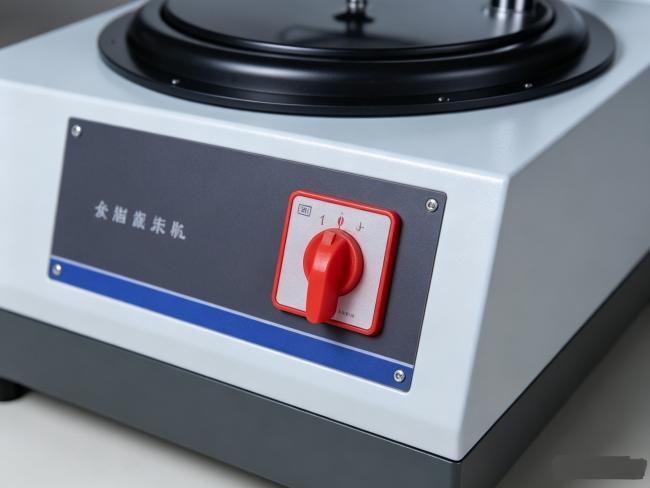

l Two gear constant speed switch, easy to operate
l Rotary pipe cooling can be rotated in the direction to adjust the size of water flow.
l Low operating noise and smooth grinding disc.
Technical parameters
|
Item |
specifications |
|
Working disk diameter |
Standard 230mm (optional 203mm) |
|
speed |
V1=500r/min, V2=1000r/min(customizable) |
|
Motor |
Power: 0.37 KW |
|
Power supply |
Voltage: AC380V Frequency: 50HZ (AC220 can be customized) |
|
Overall dimensions |
680x360x340mm |
|
The weight of the |
37kg |
Standard accessories (this list is for reference, the type or quantity of accessories shall be subject to the contract)
|
Item |
Quantity |
Item |
Quantity |
|
Retainer ring φ230 mm |
1 |
Quick twist joint SNZ08-04 |
1 |
|
Inlet pipe Φ 8 |
1 |
Drain-pipe Φ 32 |
1 |
|
Triangle valve 4 points |
1 |
Hose hoops 21-44 |
1 |
|
Rubber washer with strainer 4 min |
1 |
Teflon tape |
1 |
|
Sandpaper (without adhesive, diameter 230) 180, 800, 1000 |
2 |
Polished cloth (without glue, 230mm) Flocking (brown), canvas |
Each 1 |
|
Operating instruction |
1 |
Certificate of approval |
1 |
