FD530mini Large Screen Li Battery USMGO Portable Ultrasonic Flaw Detector (UT)
FD530mini Large Screen Li Battery USMGO Portable Ultrasonic Flaw Detector (UT)
Performance Features
l The dual CPUs work in coordination, high speed detecting and data processing；
l Automatic calibration；
l Easy tests of thickness and sound velocity of materials;
l Freely set standards for various industries to meet different flaw detection
l Automated display precise flaw location(Depth d,level p,distance s,amplitude,dB,diameter ф)；
l Freely set standards for various industries to meet different flaw detection；
l The echo suppression is adjustable from 0 to 90%, without affecting the dB gain and linearity；
l DAG and AVG(DGS) curves are generated automatically;
l Muti-functions for easy detection: peak memory, Display freeze, automatic gain & wave search；
l Li -battery, continue working time up to 10 hours;
l Storage: 500 sets of flaw detection process and data storage;
l Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles;
l USB connects to computer,automatically generate flaw detection report;
Technical Parameters
|
Item |
Technical Data |
|
Range of scanning (mm) |
Range of scanning (mm):0～1000 |
|
D-delay (ms) |
D-delay (ms):0～5000 |
|
MTLVEL(m/s) |
MTLVEL:1000～9999 |
|
Working mode |
Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe) |
|
Frequency Range (MHz) |
0.5~10 |
|
Gain adjustment (dB) |
0～110 |
|
Reject |
0%～80% of screen height |
|
Vertical linear error |
Vertical linear error is not more than 3% |
|
Horizontal linear error |
Not more than 0.1% in the scanning range |
|
Sensitivity Leavings |
≥50 dB |
|
Dynamic range |
≥36dB |
|
Alarm |
Three modes, i.e. forbidden wave, loss wave and auto |
|
A-Scan display area |
Full screen or local A-Scan display freezing and de-freezing A-Scan filling |
|
Data save |
500 A-Scan images (including setting of instrument) |
|
Standard communication interface with PC |
USB |
|
Measuring unit |
mm/inch |
|
Battery |
Li battery 3.6V 3000mAh * 4 |
|
Power adaptor |
4.2V DC 220AC |
|
Working temperature |
-20℃～50℃ |
|
Working humidity |
20%～90% |
|
Port type |
LEMO |
|
Overall dimension (mm) |
162×105×42 |
|
Weight (kg) |
0.68 (include Li-ion battery) |

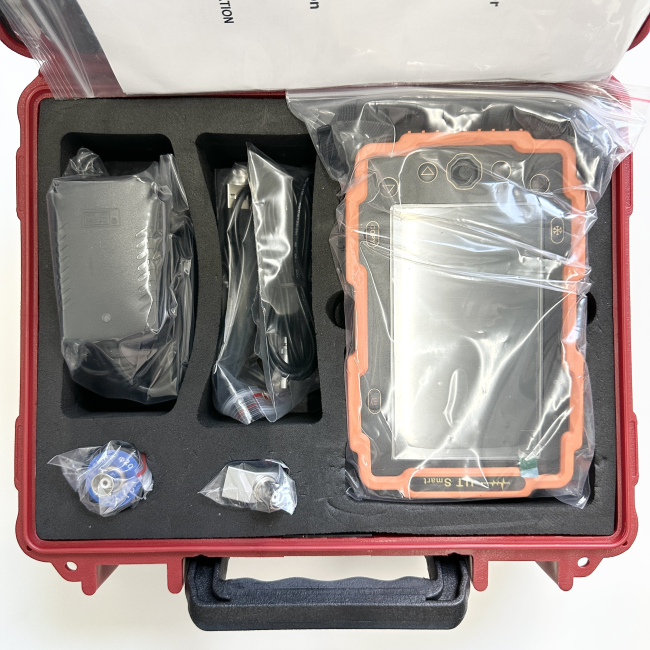

Standard Configuration
Table 1.1 List of standard configurations
|
Designation |
Quantity |
|
Main unit |
1 |
|
4.2V power adaptor |
1 |
|
probe connecting cable |
1 |
|
Carrying case |
1 |
|
Instruction manual |
1 |
|
Straight probe |
1 (Dia 20mm, 2.5MHz) |
|
Angle probe |
1 (13×13, 60°, 2.5MHz) |
Options
|
Designation |
Quantity |
|
Communication software for PC |
1 set |
|
Other probes |
Straight/ Angle/ Dual types for option |
