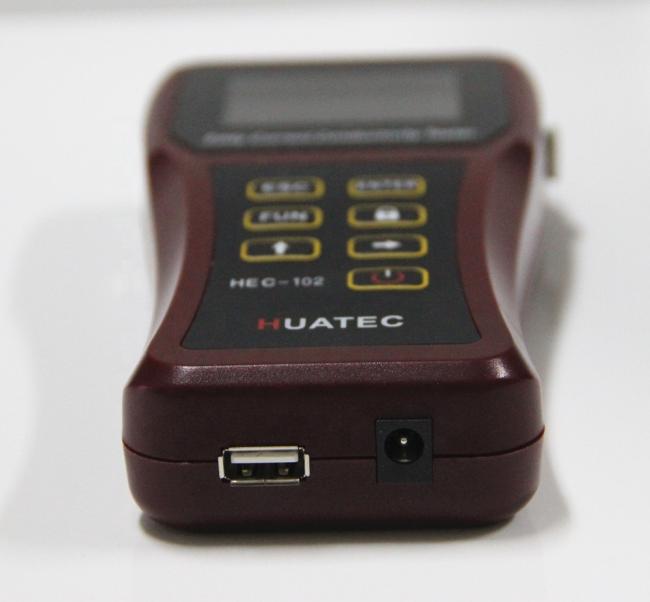

HEC-102 Digital Portable Eddy Current Electrical Conductivity Meter
HEC-102 Portable Digital Eddy Current Conductivity Meter
Application:
★ Absolute measurement of electrical conductivity of nearly all non-ferrous metals；(Ti – Ag)
★ In the aerospace and automotive industry,monitor the process of heat treatment, the strength and hardness of aluminum alloy；
★Test the conductivity when the aluminum have not been oxidized；
★ Measurement the purity of non-ferrous metals；
★Test the resistivity of conductive materials；
★Analyze thermal properties of materials.
HEC-102 Technical parameters
|
NAME |
CONTENT |
NOTE |
|
|
Measurement technology |
Eddy current |
|
|
|
Operating frequency |
60KHz |
|
|
|
Display screen |
240X320 pixels TFT-LCD |
4 kinds of background color |
|
|
L*B*H |
180*80*35 mm |
|
|
|
Instrument case |
Anti-intense impact,water-proofing polyester |
Match the fixed belt the leather protective covering |
|
|
Weight |
245g |
Contain battery |
|
|
Power supply |
High capacity, high performance lithium polymer battery |
Not back light illuminate may keep on working about 100 hours. |
|
|
Measuring range |
1%IACS—105%IACS(0.58 MS/m -61MS/m) |
|
|
|
Distinguishing rate |
0.01% IACS |
|
|
|
Probe compensated |
0.05mm |
|
|
|
Measuring accuracy |
0°C to 50°C 23%IACS :±0.25%IACS 100%IACS :±0.5%IACS |
|
|
|
Temperature compensation |
0°C～50°C |
Automatic compensation function |
|
|
Normal work environment |
Relative humidity |
0～95% |
|
|
Operating temperature |
0℃～50℃ |
|
|
|
Language |
Chinese, English |
|
|
|
PC communication |
USB |
|
|
|
Fitting |
Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter |
Conductivity sample installs in the instrument, to verify and guarantee temperature compensation |
|
|
Probe Diameter |
12.7mm (Applicable to minimum measuring area diameter at 60KHz is13mm.) |
|
|
|
Reading storage |
Preserve 1000 survey data |
|
|
Hand-held eddy current conductivity tester for NF-metals with automatic normalization of the conductivity values to 20°C through temperature sensor.
