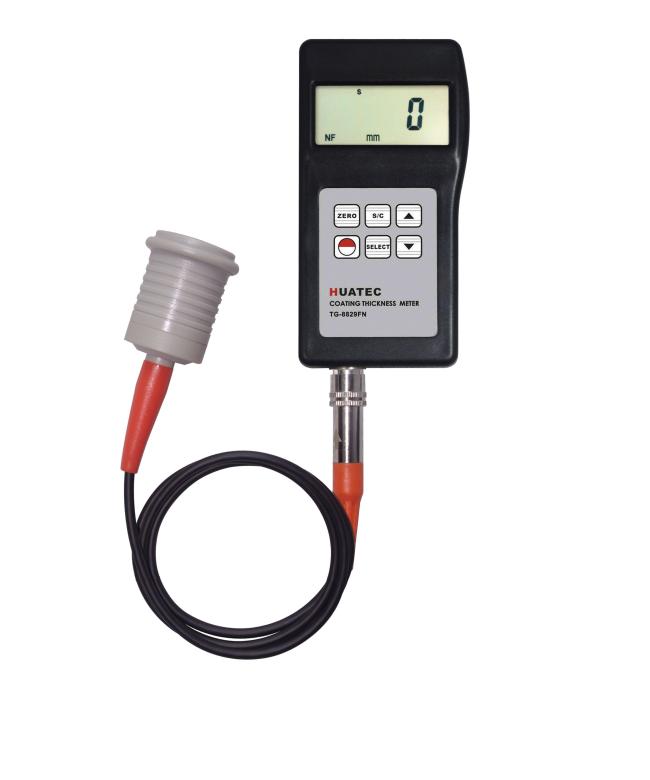

12 mm Coating Thickness Gauge For Non Conductive Coating Layers With Separate Probe
Price:
Negotiable
MOQ:
1 set
Delivery Time:
3-7 working days
Brand:
HUATEC
Product Description
12 mm Coating Thickness Gauge TG8829F For Non Conductive Coating Layers With Separate Probe
Description:
With separate probe(s)
Function: TG-8829F (ferrous substrate)
Function: TG-8829F (ferrous substrate)
Operating principle: magnetic induction
Measuring range:0-12000um/
Resolution; 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 30mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AAA(UM-4)battery
Auto power off
Operating conditions:0-+45℃(32℉-104℉), ≤90%RH
Dimensions: 126x65x27mm
weight: 81g(not including battery)
Optional accessories: other range 0-200um to 15000um
Optional accessories: other range 0-200um to 15000um
Application:
TG-8829F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
TG-8829F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
Standard Delivery of TG8829F:
Main unit(1250um) 1
F type probe 1
F calibration base set 1
Calibration foil set 1set (4 foils)
Carrying case 1
Instruction manual 1
Optional Accessories
Cable and software for RS-232C
Main unit(1250um) 1
F type probe 1
F calibration base set 1
Calibration foil set 1set (4 foils)
Carrying case 1
Instruction manual 1
Optional Accessories
Cable and software for RS-232C
Customized testing range
