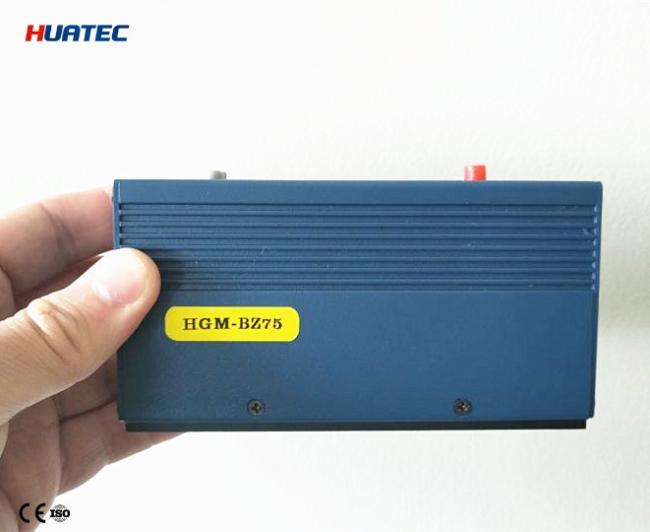

Gloss Meter Model HGM-BZ75(75°intelligent )

Standard

International standard ISO-8254, TAPPI - T480, ASTM-C346, ASTM-D2457, DIN67530 and China standard GB8941.3

The technical parameters follows China metrology standard JJG696-2002.

Application
BZ75 ° intelligent glossiness meter is follow ISO - 8254, TAPPI - T480, GB8941.3 standard manufacture high-precision, miniaturization, intelligent paper with glossiness plan, suitable for paper, etc, the paper is printed paper surface gloss surface lens to value measurement.

Parameter
The technical parameters up to JJG 696 (First-level standar).
1, test swpe:0.0-300.0(Ｇs)
2, test accuracy:＜1.2(Ｇs)
3, stability:0.4Gs/30min
4, test caliber:16×18(mm²)
5, size:128×35×64 (mm³)
6, power:4.8V (Rechargeable battery inside)

Standard Delivery:
Gloss meter
Instrument case
Standard board
Battery charger
Instruction booklet
Certificate
Maintenance list
