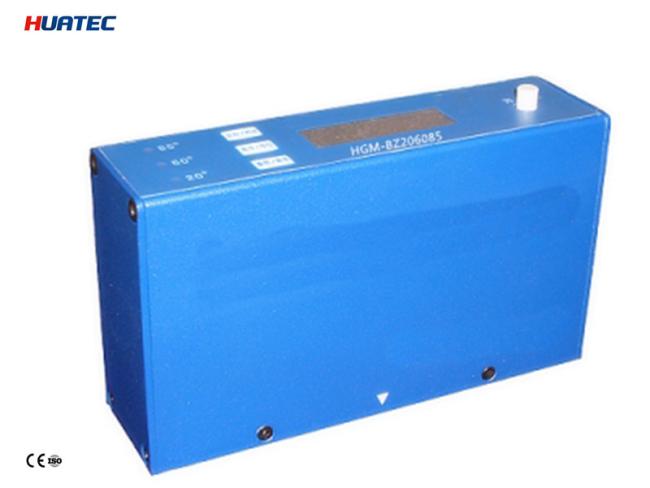

Intelligent Three Angle 0.4Gs / 30min Gloss Meter HGM-BZ206085 For Non - Metalic Coatings

Gloss Meter Model BZ206085 Intelligent three angle gloss meter

Standard

International standard ISO2813, ASTM-D2457, DIN67530 and China standard GB9754, GB9966, GB8807.

The technical parameters follows China metrology standard JJG696-2002.

Application

1.Measurement of the gloss of all kinds of non-metalic coatings.
2.Measurement of the surface gloss of the non-metallic decorative material.
Monolithic integrated circuit control circuit, new pressed key operation, dexterous portable, only needs a calibration, the intelligent record calibration value, cuts the angle not to need directly to calibrate.

Features

1. Small and light, real easy to be carried and used.
2. One 1.5 mignon alkaline Battery can be used for almost 60 hours and 10000 reading.
3. High stability
4. Long-term stable light source needs no replacing for ever.
5. Quartz crystal standard board, no excursion.

Parameter

The technical parameters up to JJG 696 (First-level standar).
1, test swpe:0.0-300.0(Ｇs)
2, test accuracy:＜1.2(Ｇs)
3, stability:0.4Gs/30min
4, test caliber:16×48(mm²)
5, size:138×36×82 (mm³)
6, power:4.8V (Rechargeable battery inside)

Standard Delivery:
Gloss meter
Instrument case
Standard board
Battery charger
Instruction booklet
Certificate
Maintenance list
