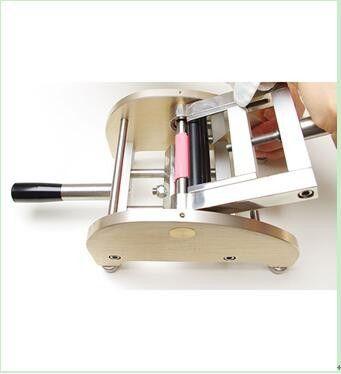

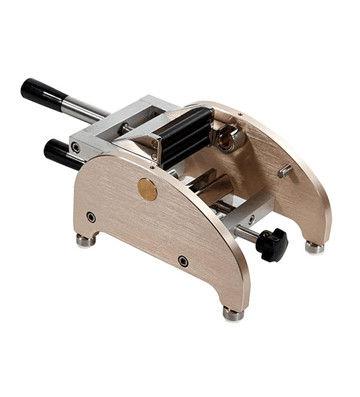

Cylindrical Mandrel Bend Tester

Product Introduction:

A very robust mechanical unit for determining the elasticity, adhesion and elongation of dry paint on metal sheet.

Introduction:

A very robust mechanical unit for determining the elasticity, adhesion and elongation of dry paint on metal sheet.
Perfect design, the instrument can be adapted to the diameter of the mandrel used.

The coated specimens up to 70mm width, are bent perfectly and regularly on decreasing mandrels until cracks can be observed.

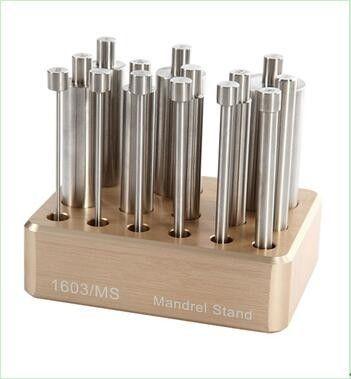

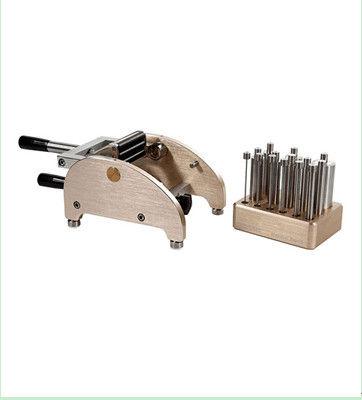

Each instrument is supplied with a kit of 14 stainless steel mandrels with diameters of: 2, 3, 4, 5, 6, 8, 10, 12, 13, 16, 19, 20, 25 and 32 mm.

Technical Specification:
◆ Maximum sample width:70mm or 100mm
◆ Sample thickness: 0.3 ~ 1 mm
◆ Mandrels with diameters:
2,3,4,5,6,8,10,12,13,16,19,20,25 and 32mm

Standard:

ASTM D522

Order Information:

1603 Cylindrical Mandrel Bend Tester, width 70mm

1603A Cylindrical Mandrel Bend Tester, width 100mm
