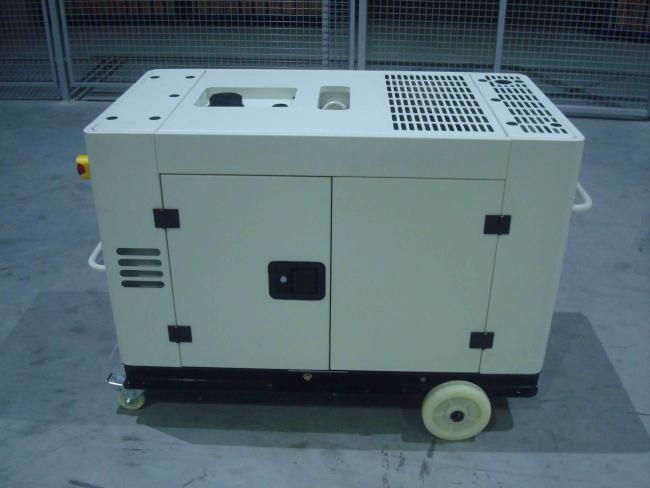

Soundproof 10kva Small Portable Diesel Generator Open Type With Intelligent Panel
hot sale 10kva generator diesel factry price portable diesel generator
Specs and data:
| JMD12EA | JMD12EA3 | JMD12STA | JMD12STA3 | ||||||||||
| generator | Frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | ||||
| Rated Output(kVA) | 8.5 | 9.5 | 10.6. | 11.5 | 8.5 | 9.5 | 10.6 | 11.5 | |||||
| Max Output(kVA) | 9.5 | 10.5 | 11.6 | 12.6 | 9.5 | 10.5 | 11.6 | 12.6 | |||||
| Voltage(V) | 115 /230 | 120 /240 |
230 /400 |
240/ 416 |
115 /230 | 120 /240 |
230 /400 |
240/ 416 |
|||||
| Current(A) | 73.8 /36.9 | 79.8 /39.6 | 13.7 | 14.5 | 73.8 /36.9 | 79.8 /39.6 | 13.7 | 14.5 | |||||
| phase | Single phase | Three phase | Single phase | Three phase | |||||||||
| Factor | 1.0 | 0.8 | 1.0 | 0.8 | |||||||||
| Insulate Class | F | F | F | F | |||||||||
| Pole | 2 | 4 | 2 | 4 | |||||||||
| AVR | |||||||||||||
| Panel type | Intelligent panel | ||||||||||||
| output | socket | 2pc single phase socket | |||||||||||
| connector | yes | ||||||||||||
| DC12V | no | ||||||||||||
| Dimension | 1030×600×790 | 1200×650×760 | |||||||||||
| weight(kg) | 200 | 310 | |||||||||||
| Noise level(7m) dB(A) | 85 | 72 | |||||||||||
| Frame type | open | silent | |||||||||||
| engine | Model | EV80 | |||||||||||
| type | V type,4 stroke,water cooled | ||||||||||||
| Displacement(mL) | 794 | ||||||||||||
| bore×stroke(mm) | 2-80×79 | ||||||||||||
| Rated power(kW) | 12 | 14 | 12 | 14 | 12 | 14 | 12 | 14 | |||||
| RPM(r/min) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | |||||
| Start type | Electric start | ||||||||||||
Diesel generator set Silent / Soundproof type – Open type
Safety – Stability – Economy - Sufficient power
1. Our cooperate with famous diesel engine–Cummins, Deutz, Perkins, Weichai, MTU
2. Brush-less alternator -- Stamford, Leroy Somer, Marathon.
3. Solid steel outer skin – 2MM to 4MM steel
4. High density sound-absorbing material -- sound insulation, fireproofing
5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.
6. Beautiful & practicably design, Bottom hole for fork, Water outlet & oil outlet
7. Double open door on both sides of the gen-sets. Spacious doors can check for every part of the engine and alternator.
Why Choose US?
1. Supply you top quality products with competitive price under the same quality level, different products according to your different market demands.
2. Strictly control the whole production process and guarantee punctual delivery, Test each of our products one by one before packing to ensure the quality.
3. Supply you a good pre-sale, in-sale and after-sale service, We're not just working partners, but also friends and family.
