KF665 Kraftformer Shringking 8mm Aluminum Sheet Chipless Cold Forming Machine
Price:
USD
MOQ:
1 set
Delivery Time:
25days
Brand:
wxjq
Product Description
Kraftformer 665 Application :
devices like ECKOLD Kraftformer in the Russian market, are mainly used for:
Aviation Maintenance (MRO
• Automobile bodywork repair
"Shipbuilding"
• Railways and Heavy Industry
• Special metal processing
• Small-batch high-precision sheet metal manufacturing
The core selling points of ECKOLD are:
• Cold forming without cutting
• High-precision shrinking/stretching
It does not damage the strength of the material
High efficiency for small-batch complex parts
Characteristic:
Improve maintenance efficiency
Reduce rework
No thermal deformation
Reduce mold cost
Small-batch flexible manufacturing
Replace imported kraftformer processes
Service And Maintenance:
1.Daily Maintenance Suggestions
JINQIU Kraftformer Officially emphasizes particularly:
Regularly clean the forming tools.
Check for wear on the necking/upsetting jaws.
Keep the tool surfaces clean.
Clean up metal powder promptly after processing aluminum.
Use a brass brush to clean the toothed surfaces of the tools.
Regularly replace the jaw plates and wear-prone parts.
Otherwise, it will lead to:
The forming accuracy decreases.
The machine load increases.
The wear of the main unit accelerates.
2.Maintenance of Wearable Components
The core maintenance components of Kraftformer include:
Jaw plates / Clamping plates Shrinking & Stretching tools
Tool components
Electrical control elements
Technical Paramter:
| Throat depth | 665mm | |
| Opening height between the connecting face of the upper and lower dies |
160～ 198 mm
|
|
| Stroke of plunger | 8 mm | |
| Plunger in feed adjustment | 80 mm | |
| Plunger punching frequency | 0～ 600 timeses/ min | |
| Max thickness of sheet the machine is capable of forming | ||
| Steel sheet ((s= 400 MPa) | 6 mm | |
| Aluminum sheet((s= 250 MPa) | 8mm | |
| Copper sheet((s= 250 MPa) | 8 mm | |
| Stainless steel sheet ((s= 600 MPa) | 4 mm | |
| Main motor | type | capacity |
| AYP-50-4.0-2-B5-A | 4.5 kw | |
| In-Feeding motor | type | capacity |
| SWF80YEJ63-0.25-42.88 V11 | 250 w | |
| Machine weight | Net weight | Gross weight |
| 2542 kg | 2700 kg | |
|
Overall dimensions (L×W×H) |
2580×1321×2400 | |
| Power supply | 3～380V 50 Hz | |
Warranty And Service:
one year warranty for whole press.
all spare parts are available as we produce most of the parts in our factory.
it is easy to get the electric parts as all are international famous brands.
we can provide technical support via email, phone or video.
we can send out engineers for service, installation or training with reasonable additional cost.
English operation and maintenance manual is provided with the press.
All safety warning tags and control panels are in English

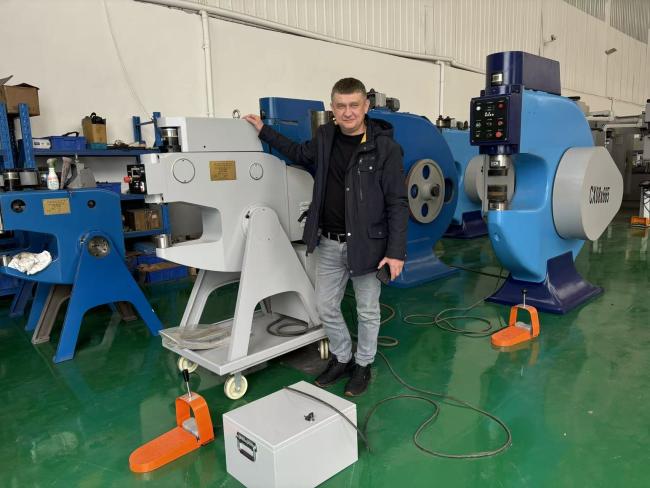

Machine Photo:
