CNC Plate Bending Machine 1200 Ton 8m Compensation Worktable 3000mm Press Brake Tooling
sell CNC hydraulic press brake machine and automatic sheet press brkae machine
Standard Configuration for hydraulic CNC sheet bending machine
the CNC sheet press brake machine control four axes(Y1,Y2,X and V)
Holistic welding structure treated by annealing
lower table cylinder crowning mechanism controlled by da-56 system.
CNC system controls mechanical titled flexible compensation working table
Swiss CYBELEC DNC600 system or Geramny DELEM DA-56 system
 High efficiency electric hydraulic proportional system from europe
press brake machine special light ebcored-gauge from Europe
High efficiency AC servo motor and driver from JAPAN
oil seals from out outside
European or Chinese high efficiency meshing gear pump
ball screw and linear guide
Standard upper and lower dies
Standard front support sheet frame

Feature for 1000ton CNC press brake:

Mechnical synchronous torque system:
A efficient and accurate mechanical hydraulic system is used for the
synchronism by means of a torsion bar ensures the parallelism
between beams.


Mechanical system of 1000T press brake machine
Two light rulers are installed at the two ends of the slide, making the
slide movement be parallel to the working table.
Adopt the working table compensation structure.
The CNC servo motor of the back gauge gives a high positioning accuracy

Hydraulic system of CNC press brake machine
A complete electrolyte servo synchro CNC (Computer Numerical Control)
controlled press brake.
Adopt Bosch electrolyte servo system (from Germany)

Synchro control system for press machine
Two light rulers (Y1-Y2) have been installed at the two sides of the machine
to measure the exact distances
The position data will be delivered to the CNC system and then it can check
out the servo valve control signal (S2-S2).

Transmission system for mechnical press brake
High-precision ball screw and linear guide-way
AC servo motor and driver;

Technical Data for CNC hydraulic press brake:

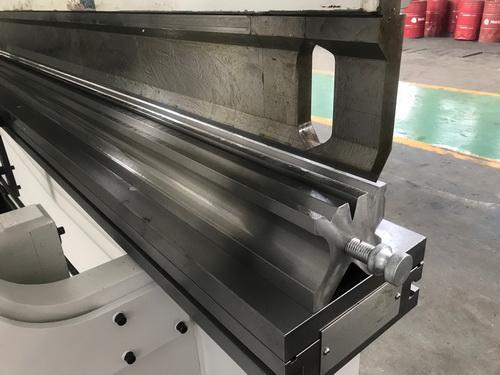

section press brake die:
